To use Hive functions in the game, you must initialize Hive SDK. After initialization, Terms of Service as well as update and notice popups registered on Hive console are automatically exposed.

Initialization Process Details

When Hive SDK is initialized, it performs the following functions:

Hive SDK initializes the following items with one initialization function.
- Authentication: Initializes Hive Client and authenticates user IdP
- Promotion: Does advertisement and issues coupons
- Notification: Manages and sets push messages to users
- Marketing Attribution: Supports total management of third-party module which traces user data, such as the number of players through advertisement and event analysis
Starting from Hive SDK v4.16.2, the SDK does not notify app access rights directly. Check out the FAQ for more details.

Expose the update and notice popups set for the relevant game.
Check the user IP and expose Terms of Service by country.

Hive Initialization Diagram

Register Hive Certification Key

With the Configuration class API, register the Hive certification key issued on the Hive console page before the Hive initialization. The corresponding API is provided from version 4.15.0 or higher.

Unity®

API Reference: Configuration.setHiveCertificationKey

// Hive Certification Key
String hiveCertKey = "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";
// Register Hive Certification Key
Configuration.setHiveCertificationKey(hiveCertKey);

// Hive Certification Key

String hiveCertKey = "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";

// Register Hive Certification Key

Configuration.setHiveCertificationKey(hiveCertKey);

C++

API Reference: Configuration::setHiveCertificationKey

// Hive Certification Key
std::string hiveCertKey = "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";
// Register Hive Certification Key
hive::Configuration::setHiveCertificationKey(hiveCertKey);

// Hive Certification Key

std::string hiveCertKey = "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";

// Register Hive Certification Key

hive::Configuration::setHiveCertificationKey(hiveCertKey);

Android

API Reference: Configuration.setHiveCertificationKey

// Hive Certification Key
String hiveCertKey = "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";
// Register Hive Certification Key
Configuration.setHiveCertificationKey(hiveCertKey);

// Hive Certification Key

String hiveCertKey = "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";

// Register Hive Certification Key

Configuration.setHiveCertificationKey(hiveCertKey);

iOS

API Reference: [HiveConfiguration setHiveCertificationKey:]

// Hive Certification Key
NSString* hiveCertKey = @"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";
// Register Hive Certification Key
[HIVEConfiguration setHiveCertificationKey: hiveCertKey];

// Hive Certification Key

NSString* hiveCertKey = @"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJIaXZlIiwiaWF0IjoxNjAzNzc4OTU2LCJqdGkiOiIxODczMTExMzIwIn0.OxWo4R6UdI0BLP1ckt8RlMFrPAb5H7TNedmLFV1Cawc";

// Register Hive Certification Key

[HIVEConfiguration setHiveCertificationKey: hiveCertKey];

Implement Initialization

To initialize Hive SDK, implement setup() method in the AuthV4 class. Following data is delivered as a result, so you can save the data in the game and utilize it if needed.

The Result Data of Hive Initialization

Field Name	Description	Example
isAutoSignIn	Whether automatic login is available or not	true
did	An identifier that abstracts the advertisement ID provided by the OS	123456789
providerTypeList	Available IdP list for the current app It is essential field to use when customizing explicit login or composing the information of IdP sync status.	ProviderType.FACEBOOK ProviderType.HIVE

Followings are sample codes to implement setup() method.

Unity®

API Reference: hive.AuthV4.setup

// Request Hive SDK Initialization
AuthV4.setup ((ResultAPI result, Boolean isAutoSignIn, String did, List providerTypeList) => {
    if (result.isSuccess()) {
        // the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.
    } else if (result.needExit()) {
        // TODO: Implement the termination of the app
        // Example) Application.Quit();
    } else {
        // initialization failed
    }
});

// Request Hive SDK Initialization

AuthV4.setup ((ResultAPI result, Boolean isAutoSignIn, String did, List providerTypeList) => {

if (result.isSuccess()) {

// the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.

} else if (result.needExit()) {

// TODO: Implement the termination of the app

// Example) Application.Quit();

} else {

// initialization failed

}

});

C++

API Reference: AuthV4::setup

// Request Hive SDK Initialization
AuthV4::setup([=](ResultAPI const & result, bool isAutoSignIn, std::string did, std::vector<ProviderType> const & providerTypeList) {

    if (result.isSuccess()) {
        // the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.
    } else if (result.needExit()) {
        // TODO: Implement the termination of the app
        // Users of the Cocos2d-x engine
        // ex) exit(0);
        // Unreal engine users
        // Example) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
    } else {
        // initialization failed } });

// Request Hive SDK Initialization

AuthV4::setup([=](ResultAPI const & result, bool isAutoSignIn, std::string did, std::vector<ProviderType> const & providerTypeList) {

if (result.isSuccess()) {

// the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.

} else if (result.needExit()) {

// TODO: Implement the termination of the app

// Users of the Cocos2d-x engine

// ex) exit(0);

// Unreal engine users

// Example) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);

} else {

// initialization failed } });

Kotlin

API Reference: com.hive.AuthV4.setup

// Request Hive SDK Initialization
AuthV4.setup(object: AuthV4.AuthV4SetupListener{
    override fun onAuthV4Setup(result: ResultAPI, isAutoSignIn: Boolean, did: String?, providerTypeList: ArrayList<AuthV4.ProviderType>?) {        if (result.isSuccess) {
            // the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.
        } else if (result.needExit()) {
            // TODO: Implement the termination of the app
            // ex) exitProcess(0)
        } else {
            // initialization failed } } })

// Request Hive SDK Initialization

AuthV4.setup(object: AuthV4.AuthV4SetupListener{

override fun onAuthV4Setup(result: ResultAPI, isAutoSignIn: Boolean, did: String?, providerTypeList: ArrayList<AuthV4.ProviderType>?) { if (result.isSuccess) {

// the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.

} else if (result.needExit()) {

// TODO: Implement the termination of the app

// ex) exitProcess(0)

} else {

// initialization failed } } })

Java

API Reference: com.hive.AuthV4.setup

// Request Hive SDK Initialization
AuthV4.setup(new AuthV4.AuthV4SetupListener() {
    @Override
    public void onAuthV4Setup(ResultAPI result, boolean isAutoSignIn, String did, ArrayList<AuthV4.ProviderType> providerTypeList) {

            if (result.isSuccess()) {
            // the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.
        } else if (result.needExit()) {
            // TODO: Implement the termination of the app
            // ex) System.exit(0);
        } else {
            // initialization failed } } });

// Request Hive SDK Initialization

AuthV4.setup(new AuthV4.AuthV4SetupListener() {

@Override

public void onAuthV4Setup(ResultAPI result, boolean isAutoSignIn, String did, ArrayList<AuthV4.ProviderType> providerTypeList) {

if (result.isSuccess()) {

// the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.

} else if (result.needExit()) {

// TODO: Implement the termination of the app

// ex) System.exit(0);

} else {

// initialization failed } } });

Swift

API Reference: HIVEAuthV4:setup

AuthV4Interface.setup { (result, isAutoSignIn, did, providerTypeList) in
    if result.isSuccess() {
        // the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.
    } else if result.needExit() {
        // TODO: Implement the termination of the app
        // Example) exit(0)
    } else {
        // initialization failed
    }
}

AuthV4Interface.setup { (result, isAutoSignIn, did, providerTypeList) in

if result.isSuccess() {

// the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.

} else if result.needExit() {

// TODO: Implement the termination of the app

// Example) exit(0)

} else {

// initialization failed

}

Obj-C

API Reference: HIVEAuthV4:setup

// Request Hive SDK Initialization
[HIVEAuthV4 setup:^(HIVEResultAPI *result, BOOL isAutoSignIn, NSString *did, NSArray<NSNumber *> *providerTypeList) {
    if (result.isSuccess) {
        // the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.
    } else if (result.needExit) {
        // TODO: Implement the termination of the app
        // ex) exit(0);
    } else {
        // Initialization failed } }];

// Request Hive SDK Initialization

[HIVEAuthV4 setup:^(HIVEResultAPI *result, BOOL isAutoSignIn, NSString *did, NSArray<NSNumber *> *providerTypeList) {

if (result.isSuccess) {

// the initialization is successfully done. Handle login based on whether the auto-login is enabled or not.

} else if (result.needExit) {

// TODO: Implement the termination of the app

// ex) exit(0);

} else {

// Initialization failed } }];

Notify App Access Permission

Screen design

Read this guide carefully if you want to change your pop-up to a game-specific custom pop-up that matches the game UI.

Custom permission notice popup

How to use

Localized resource file required to notify permission is available if you use getPermissionVeiwData() method in the Configuration class prior to implementing initialization function such as setup() method in the AuthV4 class or initialize() method in the Auth class. This API reads Permissions.zip resource file, suitable for the target language, and composes PermissionVeiwData as string type.

Make sure to add the Premissions.zip file to Xcode project before implementing this API on iOS. On Android, it is optional to add the resource file. If you want to edit texts in the resource file, add the Permissions.zip file to your project as mentioned for iOS. If not added, permission notice data is composed of default resources included in Hive SDK. This feature is available with Hive SDK v4.12.1 and later. If your SDK is earlier than v4.12.1, click here to read details to use this feature with requestPermissionViewData() method.

Refer to the following sample codes how to implement getPermissionViewData()method.

Unity®

HIVELanguage language = HIVELanguage.HIVELanguageEN;
/* Supported language list.
	HIVELanguageAR,    // Arabic
    HIVELanguageDE,    // German
    HIVELanguageEN,    // English
    HIVELanguageES,    // Spanish
    HIVELanguageFR,    // French
    HIVELanguageID,    // Indonesian
    HIVELanguageIT,    // Italian
    HIVELanguageJA,    // Japanese
    HIVELanguageKO,    // Korean
    HIVELanguagePT,    // Portuguese
    HIVELanguageRU,    // Russian
    HIVELanguageTH,    // Thai
    HIVELanguageTR,    // Turkish
    HIVELanguageVI,     // Vietnamese
    HIVELanguageZHS,    // Chinese simplified
    HIVELanguageZHT     // Chinese traditional
*/


PermissionViewData data = Configuration.getPermissionViewData(language);    // language means enum HIVELanguage.

//TODO : contents title :  data.contents
for (int i = 0; i < data.permissions.Count; i++)
{
    /* TODO :
       permission name : data.permissions[i].nativePermissionName
       title : data.permissions[i].title
       contents : data.permissions[i].contents
       category : data.permissions[i].permissionCategory
     */
}
for (int i = 0; i < data.commons.Count; i++)
{
    /* TODO : data.permissions exists only when permission notice is at least one.
        permission name : data.commons[i].nativePermissionName
        title : data.commons[i].title
        contents : data.commons[i].contents
        category : data.commons[i].permissionCategory
     */
}

HIVELanguage language = HIVELanguage.HIVELanguageEN;

/* Supported language list.

HIVELanguageAR, // Arabic

HIVELanguageDE, // German

HIVELanguageEN, // English

HIVELanguageES, // Spanish

HIVELanguageFR, // French

HIVELanguageID, // Indonesian

HIVELanguageIT, // Italian

HIVELanguageJA, // Japanese

HIVELanguageKO, // Korean

HIVELanguagePT, // Portuguese

HIVELanguageRU, // Russian

HIVELanguageTH, // Thai

HIVELanguageTR, // Turkish

HIVELanguageVI, // Vietnamese

HIVELanguageZHS, // Chinese simplified

HIVELanguageZHT // Chinese traditional

PermissionViewData data = Configuration.getPermissionViewData(language); // language means enum HIVELanguage.

//TODO : contents title : data.contents

for (int i = 0; i < data.permissions.Count; i++)

{

/* TODO :

permission name : data.permissions[i].nativePermissionName

title : data.permissions[i].title

contents : data.permissions[i].contents

category : data.permissions[i].permissionCategory

}

for (int i = 0; i < data.commons.Count; i++)

{

/* TODO : data.permissions exists only when permission notice is at least one.

permission name : data.commons[i].nativePermissionName

title : data.commons[i].title

contents : data.commons[i].contents

category : data.commons[i].permissionCategory

}

C++

HIVELanguage language = HIVELanguage.HIVELanguageEN;
/* Supported language list.
	HIVELanguageAR,    // Arabic
    HIVELanguageDE,    // German
    HIVELanguageEN,    // English
    HIVELanguageES,    // Spanish
    HIVELanguageFR,    // French
    HIVELanguageID,    // Indonesian
    HIVELanguageIT,    // Italian
    HIVELanguageJA,    // Japanese
    HIVELanguageKO,    // Korean
    HIVELanguagePT,    // Portuguese
    HIVELanguageRU,    // Russian
    HIVELanguageTH,    // Thai
    HIVELanguageTR,    // Turkish
    HIVELanguageVI,     // Vietnamese
    HIVELanguageZHS,    // Chinese simplified
    HIVELanguageZHT     // Chinese traditional
*/


PermissionViewData data =  hive::Configuration::getPermissionViewData(language);    //language means enum HIVELanguage.

//TODO : contents title : data.contents.c_str()
for (auto unit : data.permissions) {
    /* TODO :
        permission name : unit.nativePermissionName.c_str()
        title : unit.title.c_str()
        contents : unit.contents.c_str()
        category : unit.permissionCategory
     */
}
for (auto unit : data.commons) {
    /* TODO : data.permissions exists only when permission notice is at least one.
        permission name : unit.nativePermissionName.c_str()
        title : unit.title.c_str()
        contents : unit.contents.c_str()
        category : unit.permissionCategory
     */
}

HIVELanguage language = HIVELanguage.HIVELanguageEN;

/* Supported language list.

HIVELanguageAR, // Arabic

HIVELanguageDE, // German

HIVELanguageEN, // English

HIVELanguageES, // Spanish

HIVELanguageFR, // French

HIVELanguageID, // Indonesian

HIVELanguageIT, // Italian

HIVELanguageJA, // Japanese

HIVELanguageKO, // Korean

HIVELanguagePT, // Portuguese

HIVELanguageRU, // Russian

HIVELanguageTH, // Thai

HIVELanguageTR, // Turkish

HIVELanguageVI, // Vietnamese

HIVELanguageZHS, // Chinese simplified

HIVELanguageZHT // Chinese traditional

PermissionViewData data = hive::Configuration::getPermissionViewData(language); //language means enum HIVELanguage.

//TODO : contents title : data.contents.c_str()

for (auto unit : data.permissions) {

/* TODO :

permission name : unit.nativePermissionName.c_str()

title : unit.title.c_str()

contents : unit.contents.c_str()

category : unit.permissionCategory

}

for (auto unit : data.commons) {

/* TODO : data.permissions exists only when permission notice is at least one.

permission name : unit.nativePermissionName.c_str()

title : unit.title.c_str()

contents : unit.contents.c_str()

category : unit.permissionCategory

}

Android

Configuration.HIVELanguage language = Configuration.HIVELanguage.HIVELanguageEN;
/* Supported language list.
	HIVELanguageAR("ar"),    // Arabic
    HIVELanguageDE("de"),    // German
    HIVELanguageEN("en"),    // English
    HIVELanguageES("es"),     // Spanish
    HIVELanguageFR("fr"),    // French
    HIVELanguageIN("in"),    // Indonesian
    HIVELanguageIT("it"),    // Italian
    HIVELanguageJA("ja"),    // Japanerse
    HIVELanguageKO("ko"),    // Korean
    HIVELanguagePT("pt"),    // Portuguese
    HIVELanguageRU("ru"),    // Russian
    HIVELanguageTH("th"),    // Thai
    HIVELanguageTR("tr"),    // Turkish
    HIVELanguageVI("vi"),     // Vietnamese
    HIVELanguageZHS("zh-hans"),    // Chinese simplified
    HIVELanguageZHT("zh-hant");    // Chinese traditional
*/


PermissionView.PermissionViewData data = Configuration.getPermissionViewData(language);    //language is enum HIVELanguage.

//TODO : contents title : data.contents
for (PermissionView.PermissionViewUnitData permissionViewUnitData : data.permissions) {
    /* TODO :
        permission name : permissionViewUnitData.nativePermissionName
        title : permissionViewUnitData.title
        contents : permissionViewUnitData.contents
        category : permissionViewUnitData.Category
     */
}

for (PermissionView.PermissionViewUnitData commonUnitData : data.commons) {
    /* TODO : data.permissions exists only when permission notice is at least one.
        permission name : commonUnitData.nativePermissionName
        title : commonUnitData.title
        contents : commonUnitData.contents
        category : commonUnitData.Category
     */
}

Configuration.HIVELanguage language = Configuration.HIVELanguage.HIVELanguageEN;

/* Supported language list.

HIVELanguageAR("ar"), // Arabic

HIVELanguageDE("de"), // German

HIVELanguageEN("en"), // English

HIVELanguageES("es"), // Spanish

HIVELanguageFR("fr"), // French

HIVELanguageIN("in"), // Indonesian

HIVELanguageIT("it"), // Italian

HIVELanguageJA("ja"), // Japanerse

HIVELanguageKO("ko"), // Korean

HIVELanguagePT("pt"), // Portuguese

HIVELanguageRU("ru"), // Russian

HIVELanguageTH("th"), // Thai

HIVELanguageTR("tr"), // Turkish

HIVELanguageVI("vi"), // Vietnamese

HIVELanguageZHS("zh-hans"), // Chinese simplified

HIVELanguageZHT("zh-hant"); // Chinese traditional

PermissionView.PermissionViewData data = Configuration.getPermissionViewData(language); //language is enum HIVELanguage.

//TODO : contents title : data.contents

for (PermissionView.PermissionViewUnitData permissionViewUnitData : data.permissions) {

/* TODO :

permission name : permissionViewUnitData.nativePermissionName

title : permissionViewUnitData.title

contents : permissionViewUnitData.contents

category : permissionViewUnitData.Category

}

for (PermissionView.PermissionViewUnitData commonUnitData : data.commons) {

/* TODO : data.permissions exists only when permission notice is at least one.

permission name : commonUnitData.nativePermissionName

title : commonUnitData.title

contents : commonUnitData.contents

category : commonUnitData.Category

}

iOS

HIVELanguage language = kHIVELanguageEN;
/* Supported language list.
    kHIVELanguageAR,    // Arabic
    kHIVELanguageDE,    // German
    kHIVELanguageEN,    // English
    kHIVELanguageES,    // Spanish
    kHIVELanguageFR,    // French
    kHIVELanguageID,    // Indonesian
    kHIVELanguageIT,    // Italian
    kHIVELanguageJA,    // Japanese
    kHIVELanguageKO,    // Korean
    kHIVELanguagePT,    // Portuguese
    kHIVELanguageRU,    // Russian
    kHIVELanguageTH,    // Thai
    kHIVELanguageTR,    // Turkish
    kHIVELanguageVI,    // Vietnamese
    kHIVELanguageZHS,    // Chinese simplified
    kHIVELanguageZHT,    // Chinese traditional
*/


HIVEPermissionViewData* data = [HIVEConfiguration getPermissionViewData:language];    //language is enum HIVELanguage.

//TODO : contents title : [data contents]];
for (HIVEPermissionViewUnitData *unit in [data permissions]) {
   /* TODO :
       permission name : [unit nativePermissionName]
       title : [unit title]
       contents : [unit contents]
       category : [unit permissionCategory]
    */
}
for (HIVEPermissionViewUnitData *unit in [data commons]) {
   /* TODO : [data permissions] exists only when permission notice is at least one.
       permission name : [unit nativePermissionName]
       title : [unit title]
       contents : [unit contents]
       category : [unit permissionCategory]
    */
}

HIVELanguage language = kHIVELanguageEN;

/* Supported language list.

kHIVELanguageAR, // Arabic

kHIVELanguageDE, // German

kHIVELanguageEN, // English

kHIVELanguageES, // Spanish

kHIVELanguageFR, // French

kHIVELanguageID, // Indonesian

kHIVELanguageIT, // Italian

kHIVELanguageJA, // Japanese

kHIVELanguageKO, // Korean

kHIVELanguagePT, // Portuguese

kHIVELanguageRU, // Russian

kHIVELanguageTH, // Thai

kHIVELanguageTR, // Turkish

kHIVELanguageVI, // Vietnamese

kHIVELanguageZHS, // Chinese simplified

kHIVELanguageZHT, // Chinese traditional

HIVEPermissionViewData* data = [HIVEConfiguration getPermissionViewData:language]; //language is enum HIVELanguage.

//TODO : contents title : [data contents]];

for (HIVEPermissionViewUnitData *unit in [data permissions]) {

/* TODO :

permission name : [unit nativePermissionName]

title : [unit title]

contents : [unit contents]

category : [unit permissionCategory]

}

for (HIVEPermissionViewUnitData *unit in [data commons]) {

/* TODO : [data permissions] exists only when permission notice is at least one.

permission name : [unit nativePermissionName]

title : [unit title]

contents : [unit contents]

category : [unit permissionCategory]

}

Designing permission notice UI with PermissionViewData

Composing UI with data
If you request getPermissionViewData() method, you can obtain PermissionViewData which is composed of data that forms permission notice UI. In PermissionViewData, PermissionViewUnitData explains each permission as a list format.

PermissionViewData

Data name	Data type	Meaning	Exposure to UI
contents	String	It explains authority notice popup. Display on UI.	O
permissions	Linear list or array (depending on language)	It is linear list or array contained the description and name of each permission. In case new permissions may be added according to OS update or legal policy, design the flexible list, for example, the UI counting data can include various types of values. For more details about data, refer to the following PermissionViewUnitData.	Some part of them, O
commons	Linear list or array (depending on language)	It is linear list or array contained the description and name of common item. Make sure to include at least one permission notice to use commons data. For more details about data, refer to the following PermissionViewUnitData.	O

PermissionViewUnitData

Data name	Data type	Meaning
title	String	Permission name to expose to UI.
contents	String	Permission details to expose to UI. It explains how to use the permission.
nativePermissionName	String	Permission name used by each OS.
permissionCategory	enum	Permission types not exposed to UI. It describes the permission in use and the function which permission uses. You can use this data by displaying some contents you want on permission UI. To check the permission list, refer to the source code.

UI sample
Following is a sample UI which is composed by calling getPermissionViewData(). See the sample image and design suitable UI for your game.
Managing authority notice
getPermissionViewData() method in the Configuration class is newly provided to have the customizing permission notice popup your own way. It only processes a function to compose permission notice data. It means that you can specify how to implement the process. For example, you can determine whether to expose the popup the first time only or at every update.

Hive sets to display the popup the first time. If you comply with the Hive policy, make sure to code the following yellow parts with the new API. To check the function of country verification by IP, refer to the server API.
- Diagram of composing permission notice data

How to use

Information required to notify permission are available if you use requestPermissionViewData() method prior to implementing initialization function such as setup() method in the AuthV4 class or initialize() method in the Auth class. requestPermissionViewData() is async function, so use the appropriate function included in AuthV4 and Auth class depending on the type of authentication module. Refer to the following sample codes how to implement requestPermissionViewData() method.

AuthV4 class

Unity®

AuthV4.requestPermissionViewData((ResultAPI result, PermissionViewData data) => {
    if (result.isSuccess())
    {
        if (result.code == ResultAPI.Code.AuthV4SkipPermissionView)
        {
            // Skip the permission notice.
        }
        else
        {
            // data.contents(Popup title)
            for (int i = 0; i < data.permissions.Count; i++)
            {
                // data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)
            }
            for (int i = 0; i < data.commons.Count; i++)
            {
                // data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)
            }
        }
    }
    else
    {
        // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
    }
});

AuthV4.requestPermissionViewData((ResultAPI result, PermissionViewData data) => {

if (result.isSuccess())

{

if (result.code == ResultAPI.Code.AuthV4SkipPermissionView)

{

// Skip the permission notice.

}

else

{

// data.contents(Popup title)

for (int i = 0; i < data.permissions.Count; i++)

{

// data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)

}

for (int i = 0; i < data.commons.Count; i++)

{

// data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)

}

else

{

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

});

C++

AuthV4::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data) {


    if (result.isSuccess()) {
        if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {
            // Skip the permission notice
        }
        else {
            // data.contents (Popup title)
            for (auto unit : data.permissions) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
            for (auto unit : data.commons) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
    }

});

AuthV4::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data) {

if (result.isSuccess()) {

if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {

// Skip the permission notice

}

else {

// data.contents (Popup title)

for (auto unit : data.permissions) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

for (auto unit : data.commons) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

else {

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

});

Android

AuthV4.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {
    @Override
    public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {
        if (result.isSuccess()) {
            if (result.code == ResultAPI.Code.AuthV4SkipPermissionView) {
                // Skip the permission notice
            }
            else {
                // data.contents(Popup title)
                PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;
                for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {
                    // permissionViewUnitData.nativePermissionName(Permission name), permissionViewUnitData.title(Title), permissionViewUnitData.contents(Contents), permissionViewUnitData.permissionCategory(Permission category)
                }


                PermissionView.PermissionViewUnitData[] commonDatas = data.commons;
                for (PermissionView.PermissionViewUnitData commonUnitData : commonDatas) {
                    // commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)
                }
            }
        } else {
            // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
        }
    }

});

AuthV4.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {

@Override

public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {

if (result.isSuccess()) {

if (result.code == ResultAPI.Code.AuthV4SkipPermissionView) {

// Skip the permission notice

}

else {

// data.contents(Popup title)

PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;

for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {

// permissionViewUnitData.nativePermissionName(Permission name), permissionViewUnitData.title(Title), permissionViewUnitData.contents(Contents), permissionViewUnitData.permissionCategory(Permission category)

}

PermissionView.PermissionViewUnitData[] commonDatas = data.commons;

for (PermissionView.PermissionViewUnitData commonUnitData : commonDatas) {

// commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)

}

} else {

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

});

iOS

[HIVEAuthV4 requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {
    if ([result isSuccess]) {
        if ([result getCode] == kAuthV4SkipPermissionView) {
            // Skip the permission notice
        }
        else {
            // [data contents](Popup title)
            for (HIVEPermissionViewUnitData *unit in [data permissions]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
            for (HIVEPermissionViewUnitData *unit in [data commons]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
    }
}];

[HIVEAuthV4 requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {

if ([result isSuccess]) {

if ([result getCode] == kAuthV4SkipPermissionView) {

// Skip the permission notice

}

else {

// [data contents](Popup title)

for (HIVEPermissionViewUnitData *unit in [data permissions]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

for (HIVEPermissionViewUnitData *unit in [data commons]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

else {

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

}];

Auth class

Unity®

Auth.requestPermissionViewData((ResultAPI result, PermissionViewData data) =>
{
    if(result.isSuccess())
    {
        if (result.code == ResultAPI.Code.AuthSkipPermissionView)
        {
            // Skip the permission notice
        }
        else
        {
            // data.contents(Popup title)
            for (int i = 0; i<data.permissions.Count; i++)
            {
                // data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)
            }
            for (int i = 0; i<data.commons.Count; i++)
            {
                // data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)
            }
        }
    }
    else
    {
        // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
    }
});

Auth.requestPermissionViewData((ResultAPI result, PermissionViewData data) =>

{

if(result.isSuccess())

{

if (result.code == ResultAPI.Code.AuthSkipPermissionView)

{

// Skip the permission notice

}

else

{

// data.contents(Popup title)

for (int i = 0; i<data.permissions.Count; i++)

{

// data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)

}

for (int i = 0; i<data.commons.Count; i++)

{

// data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)

}

else

{

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

});

C++

Auth::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data){


    if (result.isSuccess()) {
        if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {
            // Skip the permission notice
        }
        else {
            // data.contents (Popup title)
            for (auto unit : data.permissions) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
            for (auto unit : data.commons) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
    }

});

Auth::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data){

if (result.isSuccess()) {

if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {

// Skip the permission notice

}

else {

// data.contents (Popup title)

for (auto unit : data.permissions) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

for (auto unit : data.commons) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

else {

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

});

Android

Auth.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {
    @Override
    public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {
        if (result.isSuccess()) {
            if (result.code == ResultAPI.Code.AuthSkipPermissionView) {
                // Skip the permission notice
            }
            else {
                // data.contents(Popup title)
                PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;
                for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {
                    // permissionViewUnitData.nativePermissionName(Permission name), permissionViewUnitData.title(Title), permissionViewUnitData.contents(Contents), permissionViewUnitData.permissionCategory(Permission category)
                }


                PermissionView.PermissionViewUnitData[] commonUnitDatas = data.commons;
                for (PermissionView.PermissionViewUnitData commonUnitData : commonUnitDatas) {
                    // commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)
                }
            }
        } else {
            // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
        }
    }

});

Auth.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {

@Override

public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {

if (result.isSuccess()) {

if (result.code == ResultAPI.Code.AuthSkipPermissionView) {

// Skip the permission notice

}

else {

// data.contents(Popup title)

PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;

for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {

}

PermissionView.PermissionViewUnitData[] commonUnitDatas = data.commons;

for (PermissionView.PermissionViewUnitData commonUnitData : commonUnitDatas) {

// commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)

}

} else {

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

});

iOS

[HIVEAuth requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {
    if ([result isSuccess]) {
        if ([result getCode] == kAuthSkipPermissionView) {
            // Skip the permission notice
        }
        else {
            // [data contents](Popup title)
            for (HIVEPermissionViewUnitData *unit in [data permissions]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
            for (HIVEPermissionViewUnitData *unit in [data commons]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
    }
}];

[HIVEAuth requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {

if ([result isSuccess]) {

if ([result getCode] == kAuthSkipPermissionView) {

// Skip the permission notice

}

else {

// [data contents](Popup title)

for (HIVEPermissionViewUnitData *unit in [data permissions]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

for (HIVEPermissionViewUnitData *unit in [data commons]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

else {

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

}];

Designing permission notice UI with PermissionViewData

Composing UI with data
If you request requestPermissionViewData() method, you can obtain PermissionViewData which is composed of data that forms permission notice UI. In PermissionViewData, PermissionViewUnitData explains each permission as a list format.

PermissionViewData

Data name	Data type	Meaning	Exposure to UI
contents	String	It explains permission notice popup. Display on UI.	O
permissions	Linear list or array (depending on language)	It is linear list or array contained the description and name of each permission. In case new permissions may be added according to OS update or legal policy, design the flexible list, for example, the UI counting data can include various types of values. For more details about data, refer to the following PermissionViewUnitData.	Some part of them, O
commons	Linear list or array (depending on language)	It is linear list or array contained the description and name of common item. Make sure to include at least one permission notice to use commons data. For more details about data, refer to the following PermissionViewUnitData.	O

PermissionViewUnitData

Data name	Data type	Meaning
title	String	Permission name to expose to UI.
contents	String	Permission details to expose to UI. It explains how to use the permission.
nativePermissionName	String	Permission name used by each OS.
permissionCategory	enum	Permission types not exposed to UI. It describes the permission in use and the function which permission uses. You can use this data by displaying some contents you want on permission UI. To check the permission list, refer to the source code.

UI sample
Following is a sample UI which is composed by calling requestPermissionViewData(). See the sample image and design suitable UI for your game.
Managing permission notice
Once permission notice is exposed, you don’t have to display permission notice popup again. For easy management, Hive SDK considers that implementing setup() method in the AuthV4 class or initialize() of Auth is confirmed the authority after calling requestPermissionViewData() method. So after this, no more data is transmitted when calling requestPermissionViewData(). As permission notice is no need, Result API code is used for transmission code. Refer to the following table to use appropriate code for each module.

Diagram of customed permission notice

How to call requestPermissionViewData()

Close the calling method

Texts

Depending on the access level, required/optional access permision is displayed. Add and inform the access permission which game requires.

iOS

According to the iOS policy to request permission at the time of use, the 4 permissions, CAMERA, PHOTO, PUSH, and IDFA, are set as the default items for the app access permission notice. For the IDFA permission, a permission request pop-up is created when the Hive SDK is initialized. For the CAMERA and PHOTO permission, a permission request pop-up appears when the function is actually used. For the PUSH permission, it is requested when the SDK is initialized. All four items are optional, so there is no problem with game play even if the user refuses these requests for permission.

In your built-Xcode project, uncompress the Permissions.zip file and drag and drop to the sub-directory of the project to organize the resources. In Project > info > Localizations, 15 languages are available, and when you select Permission.strings file, checkmarks are needed for completion as you see in the following inspector video clip. After this, you can customize as you want.

Add the title and explanation of the necessary permission in the available lists of Permission.strings. If you add fifteen language resources in your Xcode project and try to change the Korean resource, for example, Hive SDK v4.12.1 changes the texts in permission notice popup only when you add or edit the texts or title in Permission.strings (Korean).

"Header_Title" = "Access authority notice for gameplay";
"Header_OK" = "OK";


"Camera_Title" = "(Optional)Camera";
"Camera_Description" = "This authority is required to use camera for profile settings in your game.";

"Photos_Title" = "(Optional)Photo";
"Photos_Description" = "This authority is required to upload photos to the profile in your game.";

"Push_Title" = "(Optional)Push";
"Push_Description" = "This authority is required to receive push messages from the game.";

"AppleMusic_Title" = "Apple Music test for additional authority";
"AppleMusic_Description" = "This content is to test additional authority for Apple Music.";

"Common_Title" = "";
"Common_Description" = "You can still use the service without agreeing to the optional permissions.";

"Bluetooth_Title" = "";
"Bluetooth_Description" = "";

"Calendar_Title" = "";
"Calendar_Description" = "";

"Health_Title" = "";
"Health_Description" = "";

"Home_Title" = "";
"Home_Description" = "";

"Location_Title" = "";
"Location_Description" = "";

"Microphone_Title" = "";
"Microphone_Description" = "";

"Motion_Title" = "";
"Motion_Description" = "";

"Reminders_Title" = "";
"Reminders_Description" = "";

"Siri_Title" = "";
"Siri_Description" = "";

"SpeechRecognition_Title" = "";
"SpeechRecognition_Description" = "";

"TVProviderAccount_Title" = "";
"TVProviderAccount_Description" = "";

"Header_Title" = "Access authority notice for gameplay";

"Header_OK" = "OK";

"Camera_Title" = "(Optional)Camera";

"Camera_Description" = "This authority is required to use camera for profile settings in your game.";

"Photos_Title" = "(Optional)Photo";

"Photos_Description" = "This authority is required to upload photos to the profile in your game.";

"Push_Title" = "(Optional)Push";

"Push_Description" = "This authority is required to receive push messages from the game.";

"AppleMusic_Title" = "Apple Music test for additional authority";

"AppleMusic_Description" = "This content is to test additional authority for Apple Music.";

"Common_Title" = "";

"Common_Description" = "You can still use the service without agreeing to the optional permissions.";

"Bluetooth_Title" = "";

"Bluetooth_Description" = "";

"Calendar_Title" = "";

"Calendar_Description" = "";

"Health_Title" = "";

"Health_Description" = "";

"Home_Title" = "";

"Home_Description" = "";

"Location_Title" = "";

"Location_Description" = "";

"Microphone_Title" = "";

"Microphone_Description" = "";

"Motion_Title" = "";

"Motion_Description" = "";

"Reminders_Title" = "";

"Reminders_Description" = "";

"Siri_Title" = "";

"Siri_Description" = "";

"SpeechRecognition_Title" = "";

"SpeechRecognition_Description" = "";

"TVProviderAccount_Title" = "";

"TVProviderAccount_Description" = "";

Android

If you want to use Android resources, uncompress the Permissions.zip file and copy and paste in ../res folder to customize as you want.

Due to specific feature of Unity, it conflicts with permission notice resource that Hive SDK contains. Therefore, make sure to add the version at the end of folder name, copy and paste the folder to use permission notice resources for customization in advance. Refer to the following .gif files for using the resources.

Android
Cocos2d-x

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="hive_permission_ui_title">Access authority notice for gameplay</string>
    <string name="hive_permission_ui_ok">OK</string>


    <!-- PermissionGroup 'PHONE' -->
    <string name="hive_permission_phone_title">(Optional)PHONE</string>
    <string name="hive_permission_phone_desc">The authority is required to use the device identifier when sending event rewards in the game./string>

    <!-- PermissionGroup 'CONTACTS' -->
    <string name="hive_permission_contacts_title">(Optional)CONTACTS</string>
    <string name="hive_permission_contacts_desc"></string>

    <!-- PermissionGroup 'STORAGE' -->
    <string name="hive_permission_storage_title">(Optional)STORAGE</string>
    <string name="hive_permission_storage_desc">The authority is required to use an external memory storage for additional downloads.</string>

    <!-- PermissionGroup 'LOCATION' -->
    <string name="hive_permission_location_title">(Optional)LOCATION</string>
    <string name="hive_permission_location_desc">The authority is required to access your location.</string>

    <!-- PermissionGroup 'MICROPHONE' -->
    <string name="hive_permission_microphone_title">(Optional)MICROPHONE</string>
    <string name="hive_permission_microphone_desc">This authority is required to use the microphone in your device.</string>

    <!-- PermissionGroup 'CAMERA' -->
    <string name="hive_permission_camera_title">(Optional)CAMERA</string>
    <string name="hive_permission_camera_desc">This authority is required to take pictures and record video clips.</string>

    <!-- PermissionGroup 'SMS' -->
    <string name="hive_permission_sms_title">(Optional)SMS</string>
    <string name="hive_permission_sms_desc"></string>

    <!-- PermissionGroup 'CALENDAR' -->
    <string name="hive_permission_calendar_title">(Optional)CALENDAR</string>
    <string name="hive_permission_calendar_desc"></string>

    <!-- PermissionGroup 'SENSORS' -->
    <string name="hive_permission_sensors_title">(Optional)SENSORS</string>
    <string name="hive_permission_sensors_desc"></string>

    <!-- PermissionGroup 'COMMON' -->
    <string name="hive_permission_common_title"></string>
    <string name="hive_permission_common_desc">You can still use the service without agreeing to the optional permissions.</string>

</resources>

<?xml version="1.0" encoding="utf-8"?>

<string name="hive_permission_ui_title">Access authority notice for gameplay</string>

<string name="hive_permission_phone_title">(Optional)PHONE</string>

<string name="hive_permission_phone_desc">The authority is required to use the device identifier when sending event rewards in the game./string>

<string name="hive_permission_contacts_title">(Optional)CONTACTS</string>

<string name="hive_permission_storage_title">(Optional)STORAGE</string>

<string name="hive_permission_storage_desc">The authority is required to use an external memory storage for additional downloads.</string>

<string name="hive_permission_location_title">(Optional)LOCATION</string>

<string name="hive_permission_location_desc">The authority is required to access your location.</string>

<string name="hive_permission_microphone_title">(Optional)MICROPHONE</string>

<string name="hive_permission_microphone_desc">This authority is required to use the microphone in your device.</string>

<string name="hive_permission_camera_title">(Optional)CAMERA</string>

<string name="hive_permission_camera_desc">This authority is required to take pictures and record video clips.</string>

<string name="hive_permission_sms_title">(Optional)SMS</string>

<string name="hive_permission_calendar_title">(Optional)CALENDAR</string>

<string name="hive_permission_sensors_title">(Optional)SENSORS</string>

<string name="hive_permission_common_desc">You can still use the service without agreeing to the optional permissions.</string>

</resources>

For the game service, it is necessary to block the version after the update of the game client, or to block the game connection during the maintenance of the game server. Hive provides the functions to expose popups in the order of Forced game update, notification/server maintenance in accordance with the information configured in Hive Console. In the game, you can use the UI provided by Hive SDK or implement the customized UI by receiving the information from Hive.

Game Update by Force	Block to use the specific version of games and provide a link for update
Server Maintenance	Available to set the maintenance status by game server, and recommended to provide official community links by game during the server maintenance
Notice	Use to expose the important notice or update information not by force to all users

If game server is more than one, the game server information selected or set by the user must be set in Hive. If the user needs to select a game server, implement the server selection UI to change the Hive setting by calling setServerId() method of the Configuration class before showing various types of popup. If you want to renew promotion-news data with changing Hive setting, call Configuration class updateServerId() method instead of setServerId() method.

After the game server is set up, you can expose a popup at any time. If you set a popup on Hive Console, it will block game access during maintenance time. Displaying popups are available to use the UI provided by Hive SDK or customize it based on the information from Hive. Server maintenance popup/update popup/notice popup are available to set for each game server.

Set the details of server maintenance popup/update popup/notice popup on Hive Console. For more information about settings, see Operation > Provisioning guide.

Hive displays maintenance popup/update popup/notice popup, or returns information of the popup messages for customizing the popup. If Hive displays it, the popup will appear in the Hive UI style, but if you want to do it yourself, you can display the popup in whatever style you want. Call the checkMaintenance() method in the AuthV4 class by setting the parameters as shown below depending on whether you are using Hive popups.

A use of Hive-providing popups: Set isShow parameter as true.
A request for popup data to customize popups: Set isShow parameter as false. For more information about popup data, see Popup Data Returned by Hive below.

Example screen of popup

The following is an example code that displays a server maintenance popup with the UI provided by the Hive. If a user closes this popup when the server maintenance has not been completed, the exit event will be fired and forwarded to ResultAPI result.

Unity®

API Reference: hive.AuthV4.checkMaintenance

// Whether to use Hive SDK UI
Boolean isShow = true;


// Show Hive SDK server maintenance pop-up
AuthV4.checkMaintenance(isShow, (ResultAPI result, List maintenanceInfoList) => {
    if (result.isSuccess()) {
        // if there is no maintenance data
        // if isShow is false
    }
    else if (result.needExit()) {
        // TODO: Implement the termination of the app
        // Example) Application.Quit();
    }
});

// Whether to use Hive SDK UI

Boolean isShow = true;

// Show Hive SDK server maintenance pop-up

AuthV4.checkMaintenance(isShow, (ResultAPI result, List maintenanceInfoList) => {

if (result.isSuccess()) {

// if there is no maintenance data

// if isShow is false

}

else if (result.needExit()) {

// TODO: Implement the termination of the app

// Example) Application.Quit();

}

});

C++

API Reference: AuthV4::checkMaintenance

// Whether to use Hive SDK UI
bool isShow = true;


// Show Hive SDK server maintenance pop-up
AuthV4::checkMaintenance(isShow, [=](ResultAPI const & result,std::vector const & maintenanceInfolist){

    if (result.isSuccess()) {
        // if there is no maintenance data registered
        // if isShow is false
    }
    else if (result.needExit()) {
        // TODO: Implement the termination of the app
        // Users of the Cocos2d-x engine
        // ex) exit(0);
        // Unreal engine users
        // Example) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
    }
});

// Whether to use Hive SDK UI

bool isShow = true;

// Show Hive SDK server maintenance pop-up

AuthV4::checkMaintenance(isShow, [=](ResultAPI const & result,std::vector const & maintenanceInfolist){

if (result.isSuccess()) {

// if there is no maintenance data registered

// if isShow is false

}

else if (result.needExit()) {

// TODO: Implement the termination of the app

// Users of the Cocos2d-x engine

// ex) exit(0);

// Unreal engine users

// Example) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);

}

});

Kotlin

API Reference: com.hive.AuthV4.checkMaintenance

// Whether to use Hive SDK UI
val isShow = true

// Show Hive SDK server maintenance pop-up
com.hive.AuthV4.checkMaintenance(isShow, object : AuthV4MaintenanceListener {
    override fun onAuthV4Maintenance(result: ResultAPI, maintenanceInfo: ArrayList<AuthV4.AuthV4MaintenanceInfo>?) {            if (result.isSuccess()) {
            // if there is no maintenance data registered
            // if isShow is false
        }        else if (result.needExit()) {
            // TODO: Implement the termination of the app
            // Example) exitProcess(0)        }    }})

// Whether to use Hive SDK UI

val isShow = true

// Show Hive SDK server maintenance pop-up

com.hive.AuthV4.checkMaintenance(isShow, object : AuthV4MaintenanceListener {

override fun onAuthV4Maintenance(result: ResultAPI, maintenanceInfo: ArrayList<AuthV4.AuthV4MaintenanceInfo>?) { if (result.isSuccess()) {

// if there is no maintenance data registered

// if isShow is false

} else if (result.needExit()) {

// TODO: Implement the termination of the app

// Example) exitProcess(0) } }})

Java

API Reference: com.hive.AuthV4.checkMaintenance

// Whether to use Hive SDK UI
boolean isShow = true;

// Show Hive SDK server maintenance pop-up
com.hive.AuthV4.checkMaintenance(isShow, new AuthV4.AuthV4MaintenanceListener() {
    @Override
    public void onAuthV4Maintenance(ResultAPI result, ArrayList maintenanceInfo) {

        if (result.isSuccess()) {
            // if there is no maintenance data registered
            // if isShow is false
        }
        else if (result.needExit()) {
            // TODO: Implement the termination of the app
            // ex) System.exit(0);
        }
    }
});

// Whether to use Hive SDK UI

boolean isShow = true;

// Show Hive SDK server maintenance pop-up

com.hive.AuthV4.checkMaintenance(isShow, new AuthV4.AuthV4MaintenanceListener() {

@Override

public void onAuthV4Maintenance(ResultAPI result, ArrayList maintenanceInfo) {

if (result.isSuccess()) {

// if there is no maintenance data registered

// if isShow is false

}

else if (result.needExit()) {

// TODO: Implement the termination of the app

// ex) System.exit(0);

}

});

Swift

API Reference: HIVEAuthV4:checkMaintenance

// Whether to use Hive SDK UI
// Whether to use Hive SDK popup UI
let isShow = YES;

AuthV4Interface.checkMaintenance(isShow) { (result, maintenances) in

    if result.isSuccess() {
        // When there is no actual maintenance data
        // if isShow is false
    }
    else if result.needExit() {
        // TODO: Implement the termination of the app
        // Example) exit(0)
    }
}

// Whether to use Hive SDK UI

// Whether to use Hive SDK popup UI

let isShow = YES;

AuthV4Interface.checkMaintenance(isShow) { (result, maintenances) in

if result.isSuccess() {

// When there is no actual maintenance data

// if isShow is false

}

else if result.needExit() {

// TODO: Implement the termination of the app

// Example) exit(0)

}

Obj-C

API Reference: HIVEAuthV4:checkMaintenance

// Whether to use Hive SDK UI
// Whether to use Hive SDK popup UI
BOOL isShow = YES;


// Show Hive SDK server maintenance pop-up
[HIVEAuthV4 checkMaintenance:isShow handler:^(HIVEResultAPI *result, NSArray<HIVEAuthV4MaintenanceInfo *> *maintenanceInfolist) {

    if (result.isSuccess) {
        // if there is no maintenance data registered
        // if isShow is false
    }    else if (result.needExit) {
        // TODO: Implement the termination of the app
        // Example) exit(0);             }}];

// Whether to use Hive SDK UI

// Whether to use Hive SDK popup UI

BOOL isShow = YES;

// Show Hive SDK server maintenance pop-up

[HIVEAuthV4 checkMaintenance:isShow handler:^(HIVEResultAPI *result, NSArray<HIVEAuthV4MaintenanceInfo *> *maintenanceInfolist) {

if (result.isSuccess) {

// if there is no maintenance data registered

// if isShow is false

} else if (result.needExit) {

// TODO: Implement the termination of the app

// Example) exit(0); }}];

If Hive receives request for the popup information set in Hive Console through the checkMaintenance() method, it returns the values summarized in the following table in the AuthV4MaintenanceInfo object, and if this value is returned as null, there is no content to pop up.

Details of AuthV4MaintenanceInfo object

Field Name	Description	Type
title	Popup title	String
message	Popup contents	String
button	Text for the label of popup button	String
action	Action type when a user taps the popup button OPEN_URL: Execute URL passed by external browser EXIT: End the app DONE: Just close maintenance popup	Enumeration type of AuthV4MaintenanceActionType
url	URL displayed by external browser. This is valid when the value of `action` field is OPEN_URL	String
remainingTime	Remaining time until maintenance completion (Unit: second). Time refreshes in real time and when it becomes zero, app is terminated.	Integer

Hive WebView

Terms of Service

At the time of initialization, Hive SDK expose Terms of Service (“Terms”) that are appropriate for the country determined by the user’s access IP and game development company automatically. Even so, the game should provide links for Terms and Privacy Policy to all users regardless of consent to Terms and Privacy Policy. If you use the link provided by Hive, the proper Terms and Policy are automatically selected to expose to users depending on the setting on Hive Console. The regulations how to indicate a link of Terms and Policy are different by game development company.

Example screen of terms

To display Terms of Service when click the button or link, call showTerms() method of AuthV4 class. Followings are sample codes.

Unity®

API Reference: hive.AuthV4.showTerms

// Listener managing the Terms of service exposure notification
public void onAuthV4ShowTerms(ResultAPI result) {

    Logger.log("AuthV4TestView.onAuthV4ShowTerms() Callback\nresult = " + result.toString() + "\n");
}

// Request to display terms
AuthV4.showTerms(onAuthV4ShowTerms);

// Listener managing the Terms of service exposure notification

public void onAuthV4ShowTerms(ResultAPI result) {

Logger.log("AuthV4TestView.onAuthV4ShowTerms() Callback\nresult = " + result.toString() + "\n");

}

// Request to display terms

AuthV4.showTerms(onAuthV4ShowTerms);

C++

API Reference: AuthV4::showTerms

// Request to display Hive SDK AuthV4 terms
AuthV4::showTerms([=](ResultAPI const & result) {
    // Result callback
    if (result.isSuccess()) {
        // Close the terms screen
    } else {
        // TODO : Error Handling
    }
});

// Request to display Hive SDK AuthV4 terms

AuthV4::showTerms([=](ResultAPI const & result) {

// Result callback

if (result.isSuccess()) {

// Close the terms screen

} else {

// TODO : Error Handling

}

});

Android

API Reference: com.hive.AuthV4.showTerms

com.hive.AuthV4.showTerms(new com.hive.AuthV4.AuthV4ShowTermsListener() {
    @Override
    public void onAuthV4ShowTerms(ResultAPI result) {

    }
});

com.hive.AuthV4.showTerms(new com.hive.AuthV4.AuthV4ShowTermsListener() {

@Override

public void onAuthV4ShowTerms(ResultAPI result) {

}

});

iOS

API Reference: HIVEAuthV4::showTerms

// Display terms
// Request to display terms
[HIVEAuthV4 showTerms:^(HIVEResultAPI *result) {
    Loggerd(@"HIVEAuthV4.showTerms:\nresult = %@", result);

    if (result.isSuccess) {

    }
    else {

    }
}];

// Display terms

// Request to display terms

[HIVEAuthV4 showTerms:^(HIVEResultAPI *result) {

Loggerd(@"HIVEAuthV4.showTerms:\nresult = %@", result);

if (result.isSuccess) {

}

else {

}

}];

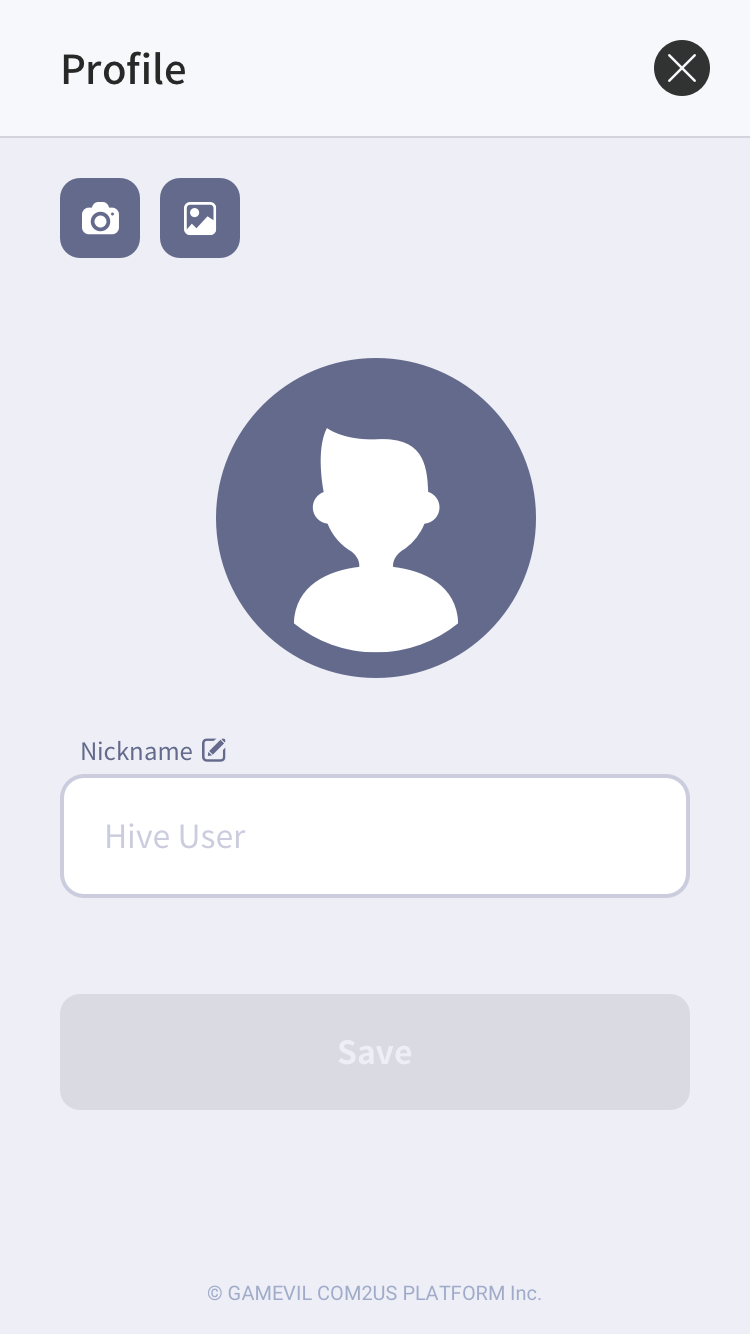

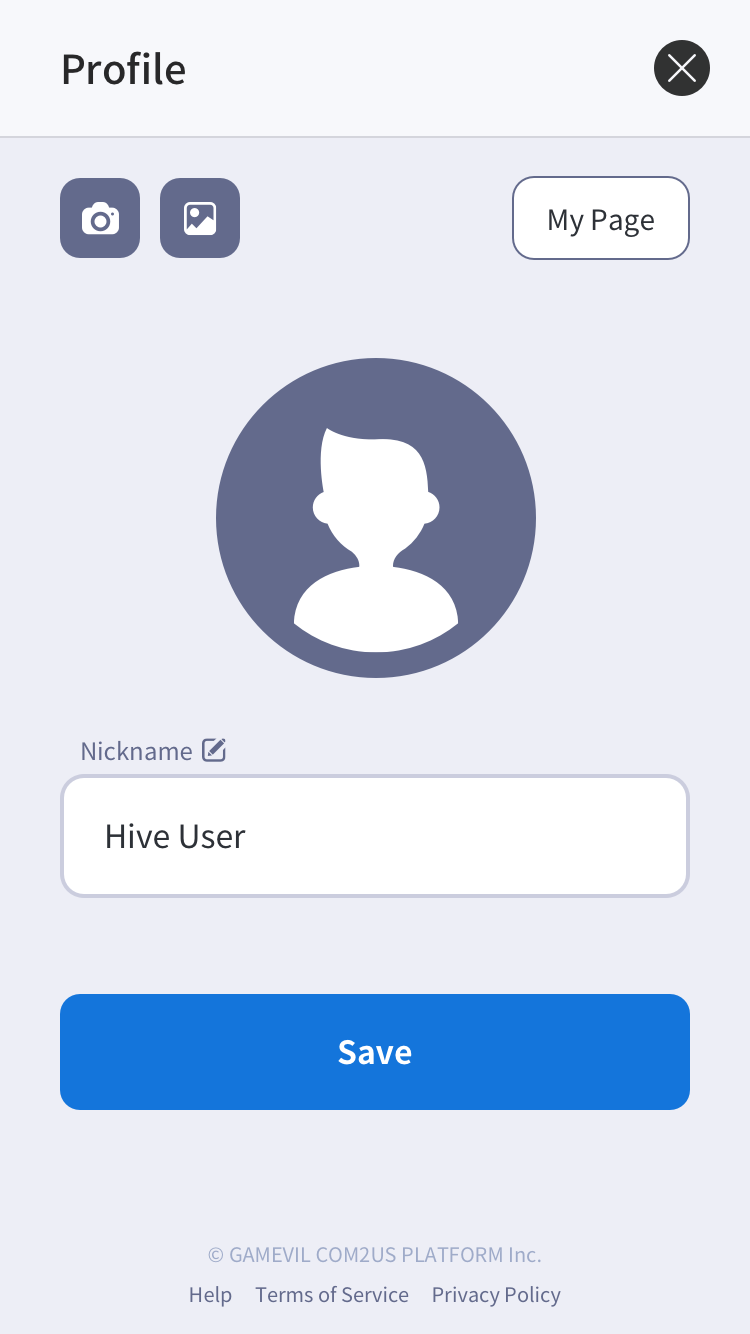

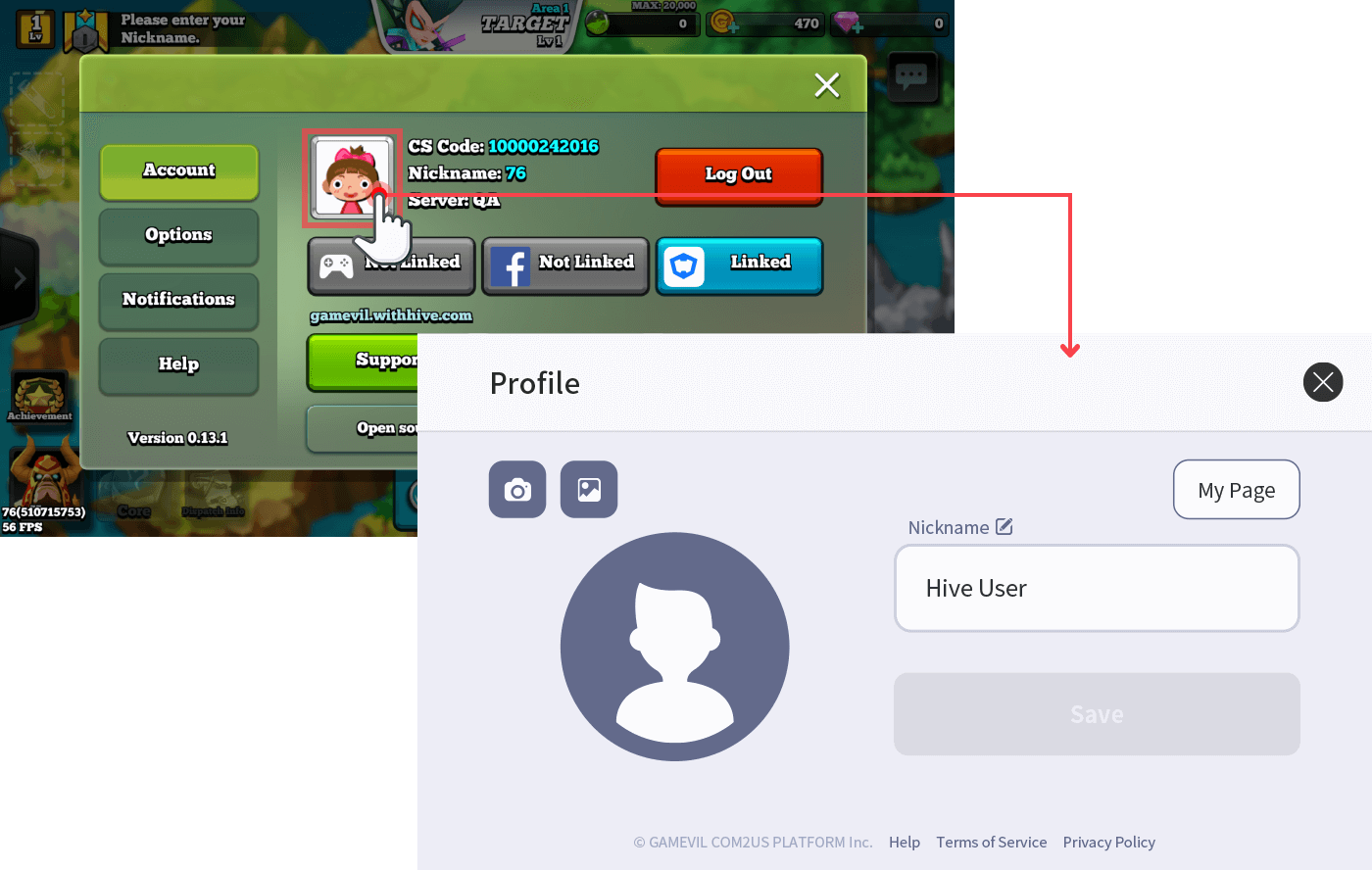

User Profile

Game users can express their personality through profile images and display names. They can change their profile image and nickname as they want.

Every user has a profile page, and they can edit their profile image and nickname on the profile page. Only Hive membership users are available to edit the profile. If users connect with IdPs such as Facebook, which returns the profile image or nickname, user data from the IdP will be used on Hive.

Hive membership-connected profile

Guest or other IdP-connected profile

To expose the profile page, call showProfile() method in the AuthV4 class.
Followings are sample codes to display the user profile.

Unity®

API Reference: hive.AuthV4.showProfile

// Show Hive SDK Profile webview
// using hive

// Hive SDK result callback handler
public void onAuthV4ShowProfile(ResultAPI result) {
    Logger.log("AuthV4TestView.onAuthV4ShowProfile() Callback\nresult = " + result.toString() + "\n");
}

// User's PlayerId
Int64 playerId = 0;

// Request Hive SDK profile
AuthV4.showProfile(playerId, onAuthV4ShowProfile);

// Show Hive SDK Profile webview

// using hive

// Hive SDK result callback handler

public void onAuthV4ShowProfile(ResultAPI result) {

Logger.log("AuthV4TestView.onAuthV4ShowProfile() Callback\nresult = " + result.toString() + "\n");

}

// User's PlayerId

Int64 playerId = 0;

// Request Hive SDK profile

AuthV4.showProfile(playerId, onAuthV4ShowProfile);

C++

API Reference: AuthV4::showProfile

Android

API Reference: com.hive.AuthV4.showProfile

// PlayerId that you want to check (This is checking my profile)
long playerId = AuthV4.getPlayerInfo().playerId;

AuthV4.showProfile(playerId, new AuthV4.AuthV4ShowProfileListener() {
    @Override
    public void onAuthV4ShowProfile(ResultAPI result) {

    }
});

// PlayerId that you want to check (This is checking my profile)

long playerId = AuthV4.getPlayerInfo().playerId;

AuthV4.showProfile(playerId, new AuthV4.AuthV4ShowProfileListener() {

@Override

public void onAuthV4ShowProfile(ResultAPI result) {

}

});

iOS

API Reference: HIVEAuthV4::showProfile

int64_t playerId = 0;

// Request Hive SDK profile
[HIVEAuthV4 showProfile:playerId handler:^(HIVEResultAPI *result) {
    Loggerd(@"HIVEAuthV4.showProfile:\nresult = %@", result);

    if (result.isSuccess) {

    }
    else {

    }
}];

int64_t playerId = 0;

// Request Hive SDK profile

[HIVEAuthV4 showProfile:playerId handler:^(HIVEResultAPI *result) {

Loggerd(@"HIVEAuthV4.showProfile:\nresult = %@", result);

if (result.isSuccess) {

}

else {

}

}];

⇡ Go to top

Inquiry

As a customer service system for Hive Platform users, it provides FAQ and inquiry for each games. This function is available on games, Hive website as well as Hive mobile web. Expose CS Code (PlayerID) with a button to access Hive Customer Service, which helps users post questions about games.

An example screen of Inquiry

To expose the inquiry page, call showInquiry() method in the AuthV4 class.
Followings are sample codes to display the inquiry page.

Unity®

API Reference: hive.AuthV4.showInquiry

// Inquiry of Hive SDK
// using hive
// Hive SDK result callback handler
public void onAuthV4ShowInquiry(ResultAPI result) {

}

// Request Hive SDK inquiry webview
AuthV4.showInquiry(onAuthV4ShowInquiry);

// Inquiry of Hive SDK

// using hive

// Hive SDK result callback handler

public void onAuthV4ShowInquiry(ResultAPI result) {

}

// Request Hive SDK inquiry webview

AuthV4.showInquiry(onAuthV4ShowInquiry);

C++

API Reference: AuthV4::showInquiry

Android

API Reference: com.hive.AuthV4.showInquiry

AuthV4.showInquiry(new AuthV4.AuthV4ShowInquiryListener() {
    @Override
    public void onAuthV4ShowInquiry(ResultAPI result) {
    }
});

AuthV4.showInquiry(new AuthV4.AuthV4ShowInquiryListener() {

@Override

public void onAuthV4ShowInquiry(ResultAPI result) {

}

});

iOS

API Reference: HIVEAuthV4::showInquiry

// Request inquiry webview of Hive SDK 1:1
[HIVEAuthV4 showInquiry:^(HIVEResultAPI *result) {

    Loggerd(@"HIVEAuthV4.showInquiry:\nresult = %@", result);

    if (result.isSuccess) {

    }
    else {

    }
}];

// Request inquiry webview of Hive SDK 1:1

[HIVEAuthV4 showInquiry:^(HIVEResultAPI *result) {

Loggerd(@"HIVEAuthV4.showInquiry:\nresult = %@", result);

if (result.isSuccess) {

}

else {

}

}];

My Inquiry Shortcut

The users synced with Hive membership can check their inquiry history via My Inquiry shortcut. Call showMyInquiry() method in AuthV4 class to make users inquire about your game and solve it easily. If user has inquired via Hive mobile or website, however, the inquiries are not exposed even Hive ID and CS Code(PlayerID) are specified on it, because it’s unknown whether user logged-in Hive membership or not.

Followings are sample codes to expose My Inquiry shortcut.

Unity®

API Reference: hive.AuthV4.showMyInquiry

// Hive SDK result callback handler
public void onAuthV4ShowMyInquiry(ResultAPI result) {
    if(result.isSuccess()) {
        // Success in API call.
    }
}
// Request Hive SDK MyInquiry
hive.AuthV4.showMyInquiry(onAuthV4ShowMyInquiry);

// Hive SDK result callback handler

public void onAuthV4ShowMyInquiry(ResultAPI result) {

if(result.isSuccess()) {

// Success in API call.

}

// Request Hive SDK MyInquiry

hive.AuthV4.showMyInquiry(onAuthV4ShowMyInquiry);

C++

API Reference: AuthV4::showMyInquiry

// Request Hive SDK MyInquiry
AuthV4::showMyInquiry([=](ResultAPI result) {
// Hive SDK result callback handler


    if(result.isSuccess()){
        // Success in API call.
    }

});

// Request Hive SDK MyInquiry

AuthV4::showMyInquiry([=](ResultAPI result) {

// Hive SDK result callback handler

if(result.isSuccess()){

// Success in API call.

}

});

Android

API Reference: com.hive.AuthV4.showMyInquiry

AuthV4.showMyInquiry(new AuthV4.AuthV4ShowMyInquiryListener() {
    @Override
    public void onAuthV4ShowMyInquiry(ResultAPI result) {
        if(result.isSuccess) {
            // Success in API call.
        }
    }
});

AuthV4.showMyInquiry(new AuthV4.AuthV4ShowMyInquiryListener() {

@Override

public void onAuthV4ShowMyInquiry(ResultAPI result) {

if(result.isSuccess) {

// Success in API call.

}

});

iOS

API Reference: HIVEAuthV4::showMyInquiry

[HIVEAuthV4 showMyInquiry:^(HIVEResultAPI *result) {


    Loggerd(@"HIVEAuthV4.showMyInquiry:\nresult = %@", result);

    if (result.isSuccess) {

    }
    else {

    }

}];

[HIVEAuthV4 showMyInquiry:^(HIVEResultAPI *result) {

Loggerd(@"HIVEAuthV4.showMyInquiry:\nresult = %@", result);

if (result.isSuccess) {

}

else {

}

}];

Hive Chatbot CS

Inquiry via Chatbot

An example screen of inquiry for chatbot

To expose the chatbot page, call showChatbotInquiry() method in the AuthV4 class.

Argument	Type	Description
additionalInfo	string	Data to send when exposing chatbot page Fixed as `"{ \"init_path\":\"hive_sdk_api\" }"` and if additional values are required, contact Leading Development Team, Com2uS Platform

Followings are sample codes to display the inquiry via chatbot page.

Unity®

API Reference: hive.AuthV4.showChatbotInquiry

// The JSON-format data with String type to send when calling chatbot API
String additionalInfo = "{ \"init_path\":\"hive_sdk_api\" }";
AuthV4.showChatbotInquiry(additionalInfo, (ResultAPI result)=>{
    if (result.isSuccess()) {
        // Success in API call
    }
});

// The JSON-format data with String type to send when calling chatbot API

String additionalInfo = "{ \"init_path\":\"hive_sdk_api\" }";

AuthV4.showChatbotInquiry(additionalInfo, (ResultAPI result)=>{

if (result.isSuccess()) {

// Success in API call

}

});

C++

API Reference: AuthV4::showChatbotInquiry

// The JSON-format data with String type to send when calling chatbot API
std::string additionalInfo = "{ \"init_path\":\"hive_sdk_api\" }";
AuthV4::showChatbotInquiry(additionalInfo, [=](ResultAPI const &result){
    if (result.isSuccess()) {
       // Success in API call
    }
});

// The JSON-format data with String type to send when calling chatbot API

std::string additionalInfo = "{ \"init_path\":\"hive_sdk_api\" }";

AuthV4::showChatbotInquiry(additionalInfo, [=](ResultAPI const &result){

if (result.isSuccess()) {

// Success in API call

}

});

Android

API Reference: com.hive.AuthV4.showChatbotInquiry

// The JSON-format data with String type to send when calling chatbot API
String additionalInfo = "{ \"init_path\":\"hive_sdk_api\" }";
AuthV4.showChatbotInquiry(additionalInfo, new AuthV4.AuthV4ShowChatbotInquiryListener() {
    @Override
    public void onAuthV4ShowChatbotInquiry(ResultAPI result) {
        if(result.isSuccess()){
            // Success in API call
        }
    }
});

// The JSON-format data with String type to send when calling chatbot API

String additionalInfo = "{ \"init_path\":\"hive_sdk_api\" }";

AuthV4.showChatbotInquiry(additionalInfo, new AuthV4.AuthV4ShowChatbotInquiryListener() {

@Override

public void onAuthV4ShowChatbotInquiry(ResultAPI result) {

if(result.isSuccess()){

// Success in API call

}

});

iOS

API Reference: HIVEAuthV4::showChatbotInquiry

// The JSON-format data with String type to send when calling chatbot API
NSString* additionalInfo = @"{ \"init_path\":\"hive_sdk_api\" }"; //
[HIVEAuthV4 showChatbotInquiry:additionalInfo handler:^(HIVEResultAPI *result) {
    if ([result isSuccess]) {
        // Success in API call
    }
}];

// The JSON-format data with String type to send when calling chatbot API

NSString* additionalInfo = @"{ \"init_path\":\"hive_sdk_api\" }"; //

[HIVEAuthV4 showChatbotInquiry:additionalInfo handler:^(HIVEResultAPI *result) {

if ([result isSuccess]) {

// Success in API call

}

}];

Chatbot Settings

AppDelegate in chatbot defines common actions (methods) of the object at the top in iOS app. When building your project with Xcode, it generates the class automatically.

Hive SDK exposes chatbot UI in portrait only for user convenience. Running this feature on iOS requires screen-orientation-related function, application(_:supportedInterfaceOrientationsFor:) method in the AppDelegate class of the game engine. This method returns UIInterfaceOrientationMask value for using on the game. It returns landscape in landscape-only game, portrait in portrait-only game, and landscape as well as portrait in all-type-supported game.

Objective-c

 // Implement the following AppDelegate function if your game engine is in Objective-c.
 - (UIInterfaceOrientationMask)application:(UIApplication *)application supportedInterfaceOrientationsForWindow:(UIWindow *)window
 {
    // TODO: For landscape only
    return UIInterfaceOrientationMaskLandscape;
    // TODO: For portrait only
    return UIInterfaceOrientationMaskPortrait;
    // TODO: For both landscape and portrait
    return UIInterfaceOrientationMaskAll;
 }

// Implement the following AppDelegate function if your game engine is in Objective-c.

- (UIInterfaceOrientationMask)application:(UIApplication *)application supportedInterfaceOrientationsForWindow:(UIWindow *)window

{

// TODO: For landscape only

return UIInterfaceOrientationMaskLandscape;

// TODO: For portrait only

return UIInterfaceOrientationMaskPortrait;

// TODO: For both landscape and portrait

return UIInterfaceOrientationMaskAll;

}

Swift

 // Implement the following AppDelegate function if your game engine is in Swift.
 func application(_ application: UIApplication, supportedInterfaceOrientationsFor window: UIWindow?) -> UIInterfaceOrientationMask
 {
    // TODO: For landscape only
    return [.landscape]
    // TODO: For portrait only
    return [.portrait]
    // TODO: For both landscape and portrait
    return .all
 }

// Implement the following AppDelegate function if your game engine is in Swift.

func application(_ application: UIApplication, supportedInterfaceOrientationsFor window: UIWindow?) -> UIInterfaceOrientationMask

{

// TODO: For landscape only

return [.landscape]

// TODO: For portrait only

return [.portrait]

// TODO: For both landscape and portrait

return .all

}

Chatbot only in portrait on iPad is required to build your Xcode project with the additional settings below.

Showing Community Page

For the automatic login and other functions in the Hive community, expose the community page through the API call as below.

Unity

// Set the view type (FullScreen: full screen, Frame: frame screen)
SocialV4.ViewType viewType = SocialV4.ViewType.Frame;

// showCommunity callback handler
public void onShowCommunityResultAPI result) {
    if (result.isSuccess)) {
        // API Call Success
    }
}

// call showCommunity
SocialV4.showCommunitySocialV4.ProviderType.HIVE, viewType, onShowCommunity);[/av_tab][av_tab title="Cocos2d-x"]

// Set the view type (FullScreen: full screen, Frame: frame screen)

SocialV4.ViewType viewType = SocialV4.ViewType.Frame;

// showCommunity callback handler

public void onShowCommunityResultAPI result) {

if (result.isSuccess)) {

// API Call Success

}

// call showCommunity

SocialV4.showCommunitySocialV4.ProviderType.HIVE, viewType, onShowCommunity);[/av_tab][av_tab title="Cocos2d-x"]

Cocos2d-x

// Set the view type (FullScreen: full screen, Frame: frame screen)
SocialV4::ViewType viewType = SocialV4::ViewType::Frame;

// call showCommunity
SocialV4::showCommunitySocialV4::ProviderType::HIVE, viewType, [=]ResultAPI const & result) {
    ifresult.isSuccess) {
        // API Call Success
    })
});

// Set the view type (FullScreen: full screen, Frame: frame screen)

SocialV4::ViewType viewType = SocialV4::ViewType::Frame;

// call showCommunity

SocialV4::showCommunitySocialV4::ProviderType::HIVE, viewType, [=]ResultAPI const & result) {

ifresult.isSuccess) {

// API Call Success

})

});

Android

// Set the view type (FullScreen: full screen, Frame: frame screen)
SocialV4.ViewType viewType = SocialV4.ViewType.Frame;

// call showCommunity
com.hive.SocialV4.showCommunitySocialV4.ProviderType.HIVE, viewType, new com.hive.SocialV4.SocialV4ShowCommunityListener) {
    @Override
    public void onShowCommunity@NotNull ResultAPI result) {
        ifresult.isSuccess)) {
            // API Call Success
        }
    }
});

// Set the view type (FullScreen: full screen, Frame: frame screen)

SocialV4.ViewType viewType = SocialV4.ViewType.Frame;

// call showCommunity

com.hive.SocialV4.showCommunitySocialV4.ProviderType.HIVE, viewType, new com.hive.SocialV4.SocialV4ShowCommunityListener) {

@Override

public void onShowCommunity@NotNull ResultAPI result) {

ifresult.isSuccess)) {

// API Call Success

}

});

iOS

// Set the view type (FullScreen: full screen, Frame: frame screen)
HIVESocialViewType viewType = HIVESocialViewTypeFrame;

// call showCommunity
[HIVESocialV4 showCommunity:HIVESocialProviderTypeHIVE viewType:viewType handler:^HIVEResultAPI * result) {
    ifresult.isSuccess) {
        // API Call Success
    }
}];

// Set the view type (FullScreen: full screen, Frame: frame screen)

HIVESocialViewType viewType = HIVESocialViewTypeFrame;

// call showCommunity

[HIVESocialV4 showCommunity:HIVESocialProviderTypeHIVE viewType:viewType handler:^HIVEResultAPI * result) {

ifresult.isSuccess) {

// API Call Success

}

}];

Implementing Remote Logging

Remote logging is a feature that allows you to check logs for debugging published apps remotely by sending debugging logs from client to Hive server. To implement this function, register on Hive Console. This feature activates the remote log of target users only. For more details how to register, refer to the operation guide in Operation > Provisioning > Remote logging.

Activation
If you activate the remote logging, Hive log and game log are collected for the period of time you set on Hive Console. Hive log is based on the settings on SDK, and game log is flexible for game developers to set the value.

Targeting
Remote logging targets only the users whose device has an ID (DID) through Hive SDK initialization once at least. This function, however, is unavailable to some games if crashes or errors occur before initializing SDK.
How remote logging works
Sample code
Insert the following code at every part where game requires to collect logs.

Unity®

hive.Logger.log("Input the contents of logging");

1

hive.Logger.log("Input the contents of logging");

C++

Logger::log("Input the contents of logging");

1

Logger::log("Input the contents of logging");

Android

Logger.log(Logger.HIVELogType.HIVELogTypeI, "GameLog", "Input the contents of logging");

1

Logger.log(Logger.HIVELogType.HIVELogTypeI, "GameLog", "Input the contents of logging");

iOS

Logger("Input the contents of logging");

1

Logger("Input the contents of logging");

Remote Configuration

Hive enables games to manage game server URL that mapped 1-to-1 with each version of the app. Remote configuration is given in the form of a string by calling getMetaData() API of Configuration class. The following is an example code that calls the remote configuration.

Unity®

API Reference: hive.Configuration.getMetaData

// Data key
String key = "game_server_url";
// Whether to renew data
Boolean forceReload = false;


// Callback handler managing the result of calling matadata
public void onGetMetaData(ResultAPI result, String value) {
    if (result.isSuccess()) {
        // Success in API call.
    }
}

// Call metadata
Configuration.getMetaData(key, forceReload, onGetMetaData);

// Data key

String key = "game_server_url";

// Whether to renew data

Boolean forceReload = false;

// Callback handler managing the result of calling matadata

public void onGetMetaData(ResultAPI result, String value) {

if (result.isSuccess()) {

// Success in API call.

}

// Call metadata

Configuration.getMetaData(key, forceReload, onGetMetaData);

C++

API Reference: Configuration::gertMetaData

// Data key
std::string key = "game_server_url";


// Whether to renew data
bool forceReload = false;

// Call metadata
hive::Configuration::getMetaData(metaData,isNetwork,[=](hive::ResultAPI const & result,std::string value) {
    if (result.isSuccess()) {
        // Success in API call.
    }
});

// Data key

std::string key = "game_server_url";

// Whether to renew data

bool forceReload = false;

// Call metadata

hive::Configuration::getMetaData(metaData,isNetwork,[=](hive::ResultAPI const & result,std::string value) {

if (result.isSuccess()) {

// Success in API call.

}

});

Android

API Reference: com.hive.Configuration.getMetaData

// Data key
String key = "game_server_url";


// Whether to renew data
Boolean forceReload = false;

// Call metadata
Configuration.getMetaData(key, forceReload, new Configuration.GetMetaDataListener() {
    @Override
    public void onGetMetaData(ResultAPI result, String data) {
        if (result.isSuccess()) {
            // Success in API call.
        }
    }
});

// Data key

String key = "game_server_url";

// Whether to renew data

Boolean forceReload = false;

// Call metadata

Configuration.getMetaData(key, forceReload, new Configuration.GetMetaDataListener() {

@Override

public void onGetMetaData(ResultAPI result, String data) {

if (result.isSuccess()) {

// Success in API call.

}

});

iOS

API Reference: HIVEConfiguration:getMetaData

let key = "game_server_url"
// Whether to renew data
let forceReload = false;


// Call metadata
ConfigurationInterface.getMetaData(testKey, forceReload: false) { result, value in
    if result.isSuccess() {
        // Success in API call.
        // If it returns false or null, the value is empty("").
    }
}

let key = "game_server_url"

// Whether to renew data

let forceReload = false;

// Call metadata

ConfigurationInterface.getMetaData(testKey, forceReload: false) { result, value in

if result.isSuccess() {

// Success in API call.

// If it returns false or null, the value is empty("").

}

Initialization Process Details

Register Hive Certification Key

Implement Initialization

Notify App Access Permission

Screen design

How to use

Designing permission notice UI with PermissionViewData

How to use

Designing permission notice UI with PermissionViewData

Texts

iOS

Android

Hive WebView

Terms of Service

User Profile

Inquiry

My Inquiry Shortcut

Hive Chatbot CS

Inquiry via Chatbot

Chatbot Settings

Showing Community Page

Implementing Remote Logging

Remote Configuration

Getting Started

SDK Development

Console Guide

Download

API Document

Support

Module	Code
AuthV4	AuthV4SkipPermissionView
Auth	AuthSkipPermissionView

SDK initialization

Initialization Process Details

Register Hive Certification Key

Implement Initialization

Notify App Access Permission

Screen design

How to use

Designing permission notice UI with PermissionViewData

How to use

Designing permission notice UI with PermissionViewData

Texts

iOS

Android

Server Maintenance Popups

Setting Popup Contents

Displaying Popup

Popup Data Returned by Hive

Hive WebView

Terms of Service

User Profile

Inquiry

My Inquiry Shortcut

Hive Chatbot CS

Inquiry via Chatbot

Chatbot Settings

Showing Community Page

Implementing Remote Logging

Remote Configuration

Getting Started

SDK Development

Console Guide

Download

API Document

Support
