To use Hive functions in the game, you must initialize Hive SDK. After initialization, Terms of Service as well as update and notice popups registered on Hive console are automatically exposed.

How Hive SDK Initialization works

When Hive SDK is initialized, it performs the following functions:

Hive SDK initializes the following items with one initialization function.
- Authentication: Initializes Hive Client and authenticates user IdP
- Promotion: Does advertisement and issues coupons
- Notification: Manages and sets push messages to users
- Marketing Attribution: Supports total management of third-party module which traces user data, such as the number of players through advertisement and event analysis
Get grant access permission for app from users by OS type.
- Expose if Android 6.0 and later on Android-base devices.
- Expose in Korean if country IP is Korea on iOS-base devices.
From Hive SDK v4.12.1, you can select to unveil or veil the permission notice popup by calling Configuration.setHivePermissionViewOn() method or by editing hive_config.xml file. This feature shorts the step from game start to access to game lobby, and default setting is true. If you select false, make sure to inform the access permission notice to app in market description.

How to set on hive_config.xml file

<!-- Unveil the permission notice popup. -->
<hivePermissionViewOn> true </hivePermissionViewOn>


<!-- Veil the permission notice popup. -->
<hivePermissionViewOn> false </hivePermissionViewOn>

<hivePermissionViewOn> false </hivePermissionViewOn>

How to set on API

Unity®

// Unveil the permission notice popup.
Configuration.setHivePermissionViewOn(true);
// Veil the permission notice popup.
Configuration.setHivePermissionViewOn(false);

// Unveil the permission notice popup.

Configuration.setHivePermissionViewOn(true);

// Veil the permission notice popup.

Configuration.setHivePermissionViewOn(false);

C++

// Unveil the permission notice popup.
hive::Configuration::setHivePermissionViewOn(true);
// Veil the permission notice popup.
hive::Configuration::setHivePermissionViewOn(false);

// Unveil the permission notice popup.

hive::Configuration::setHivePermissionViewOn(true);

// Veil the permission notice popup.

hive::Configuration::setHivePermissionViewOn(false);

Android

// Unveil the permission notice popup.
Configuration.setHivePermissionViewOn(true);
// Veil the permission notice popup.
Configuration.setHivePermissionViewOn(false);

// Unveil the permission notice popup.

Configuration.setHivePermissionViewOn(true);

// Veil the permission notice popup.

Configuration.setHivePermissionViewOn(false);

iOS

// Unveil the permission notice popup.
[HIVEConfiguration setHivePermissionViewOn:YES];
// Veil the permission notice popup.
[HIVEConfiguration setHivePermissionViewOn:NO];

// Unveil the permission notice popup.

[HIVEConfiguration setHivePermissionViewOn:YES];

// Veil the permission notice popup.

[HIVEConfiguration setHivePermissionViewOn:NO];

Expose the update and notice popups set for the relevant game.
Check the user IP and expose Terms of Service by country.

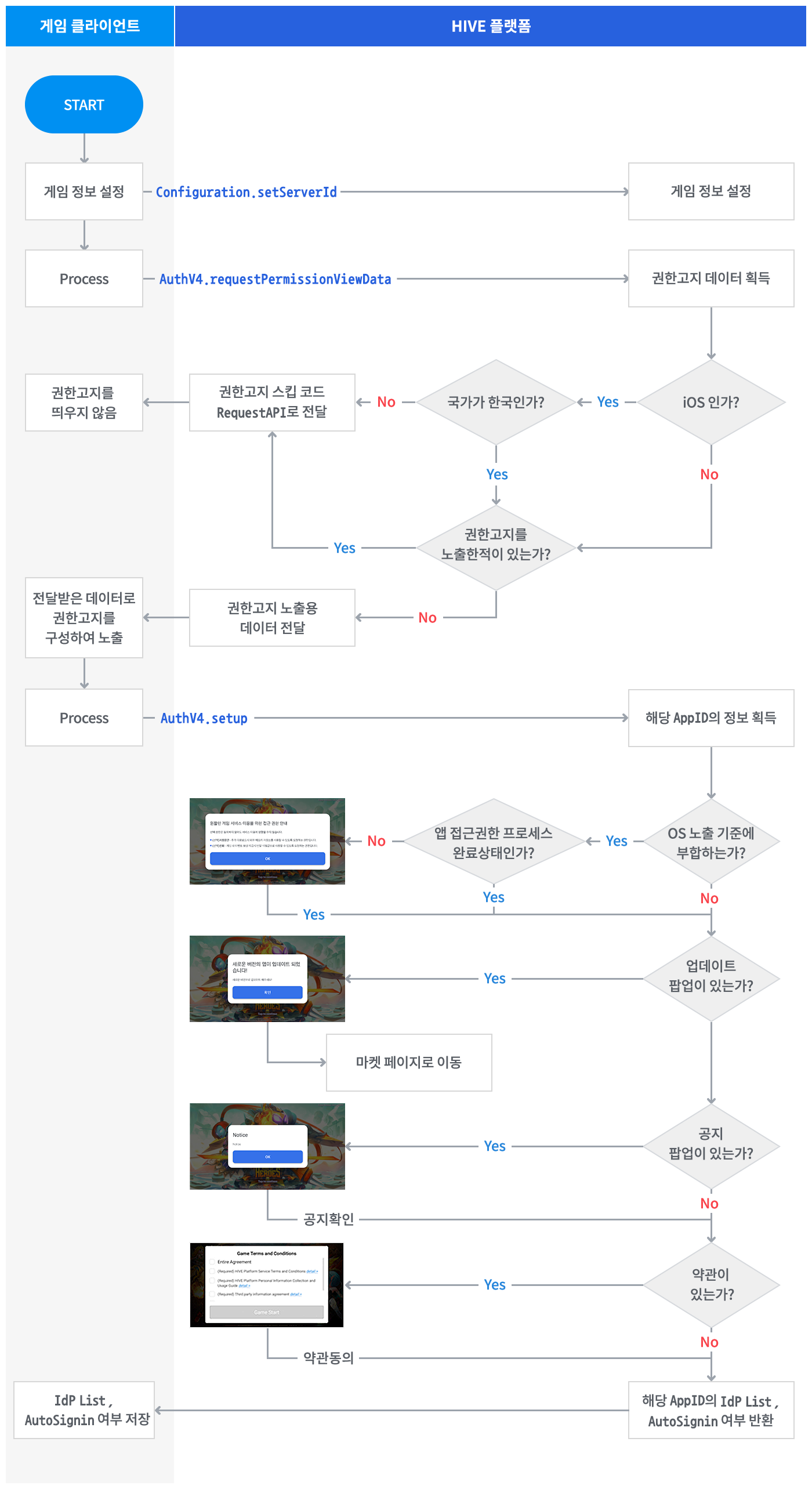

Hive Initialization Diagram

Hive SDK Initialization

To initialize Hive Client, implement initialize() method of Auth class. The result of calling the method is delivered through AuthInitResult class. Following table describes the field of AuthInitResult class.

Field Name	Description	Example
isAuthorized	Whether account login is available or not	true
loginType	Available login type on Hive	LoginType.GUEST
did	Unique device identifier issued by Hive authentication server to verify Hive login	123456
isPGSLogin	Whether Google Play Games is available to sign in (Android only)	true
playerName	Profile name on Google Play Games (Android only)	“i’m pgs user”
playerId	User account of Google Play Games (Android only)

Followings are sample codes to initialize Hive Client.

Unity®

API Reference: hive.Auth.initialize

// Callback handler managing the result of initializing Hive SDK.
public void onAuthInitializeCB(ResultAPI result, AuthInitResult authInitResult) {


    if (result.isSuccess ()) {
        // Tasks to process after success in initializing Hive SDK.
    }

}

// Request to initialize Hive SDK.
hive.Auth.initialize (onAuthInitializeCB);

// Callback handler managing the result of initializing Hive SDK.

public void onAuthInitializeCB(ResultAPI result, AuthInitResult authInitResult) {

if (result.isSuccess ()) {

// Tasks to process after success in initializing Hive SDK.

}

// Request to initialize Hive SDK.

hive.Auth.initialize (onAuthInitializeCB);

C++

API Reference: Auth::initialize

// Request to initialize Hive SDK.
Auth::initialize(
    [=](ResultAPI result, AuthInitResult authInitResult){
        // Callback function managing the result of initializing Hive SDK.


        if(result.isSuccess()){
            // Tasks to process after success in initializing Hive SDK.
        }
    }

);

// Request to initialize Hive SDK.

Auth::initialize(

[=](ResultAPI result, AuthInitResult authInitResult){

// Callback function managing the result of initializing Hive SDK.

if(result.isSuccess()){

// Tasks to process after success in initializing Hive SDK.

}

);

Android

API Reference: com.hive.Auth.initialize

// Request to initialize Hive SDK.
com.hive.Auth.initialize(
    new Auth.AuthInitializeListener() {
        // Callback listener managing the result of initializing Hive SDK.
        @Override
        public void onAuthInitialize(final ResultAPI result, final AuthInitResult authInitResult) {


            if(result.isSuccess()){
                // Tasks to process after success in initializing Hive SDK.
            }
        }

});

// Request to initialize Hive SDK.

com.hive.Auth.initialize(

new Auth.AuthInitializeListener() {

// Callback listener managing the result of initializing Hive SDK.

@Override

public void onAuthInitialize(final ResultAPI result, final AuthInitResult authInitResult) {

if(result.isSuccess()){

// Tasks to process after success in initializing Hive SDK.

}

});

iOS

API Reference: HIVEAuth::initialize:

// Request to initialize Hive SDK.
[HIVEAuth initialize:^(HIVEResultAPI* result, HIVEAuthInitResult *authInitResult) {
    // Callback handler managing the result of initializing Hive SDK.


     if (result.isSuccess) {
         // Tasks to process after success in initializing Hive SDK.
    }

}];

// Request to initialize Hive SDK.

[HIVEAuth initialize:^(HIVEResultAPI* result, HIVEAuthInitResult *authInitResult) {

// Callback handler managing the result of initializing Hive SDK.

if (result.isSuccess) {

// Tasks to process after success in initializing Hive SDK.

}

}];

Hive for New Corporate

From Hive SDK v4.11.4, any game company can use Hive platform. Hive had serviced GAMEVIL and Copm2uS only. However, the global game platform, Hive is now available to new corporates.

Available Resources

When a new corporate publishes a game with Hive platform, following resources are available to modify.

With Unity engine
1. Build your project on the engine, and then create an asset catalog (.xcassets) on your Xcode project.
2. Save your company logo in the asset catalog, and attach the logo on Terms of Service or Permission notice popup.
3. Make sure to comply with the following rules to set the name and size of your company’s logo file.
- File name: auth_logo
- File size: 270*18
- File name: auth_copyright
- File size: 270*11
- Font color: #9DA3A0
This size is for vector format such as .svg and .pdf file. Bitmap format like .png file may have problems with this size, so make sure to set the triple size.

Customizing Access Permission Screen to App

Screen design

Hive SDK provides automatic display of permission notice when implementing setup() method in the AuthV4 class or initialize() method in the Auth class. If you’d like to customize notice popup rather than using the default version, however, read the following guide to design game-friendly UI.

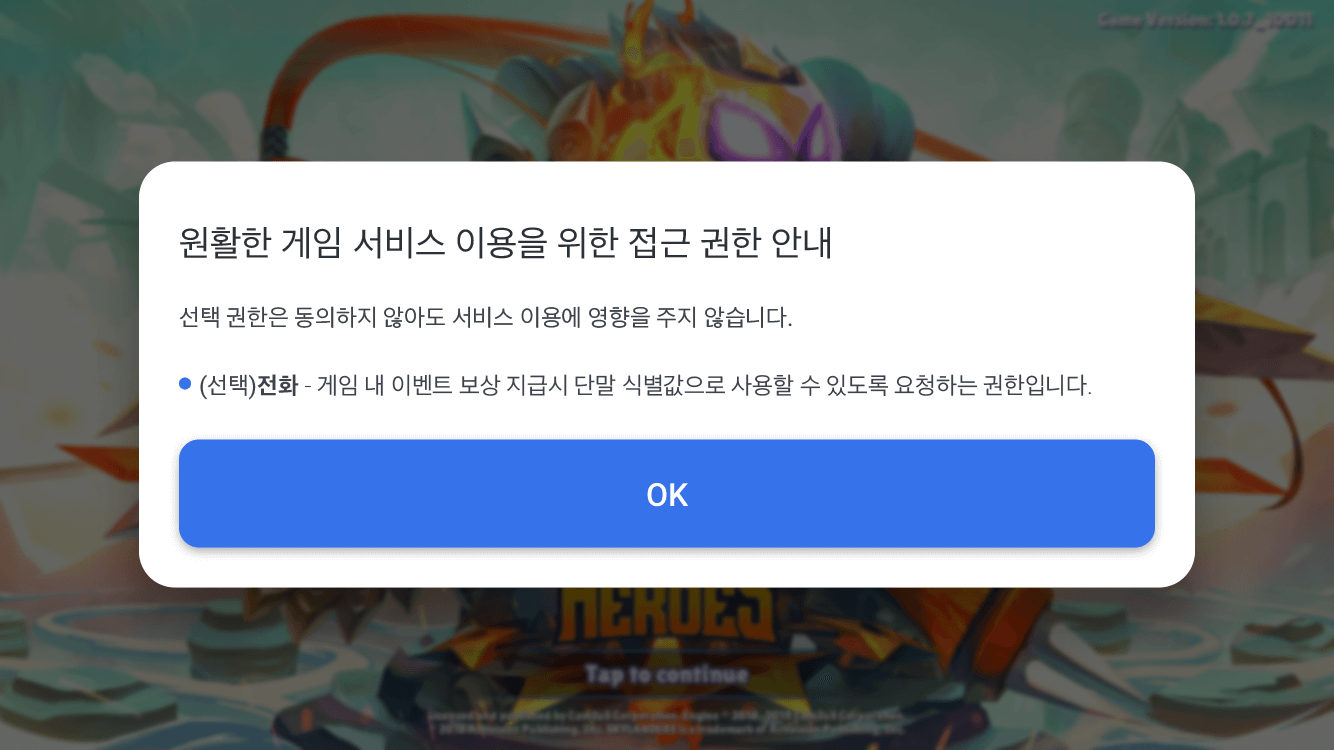

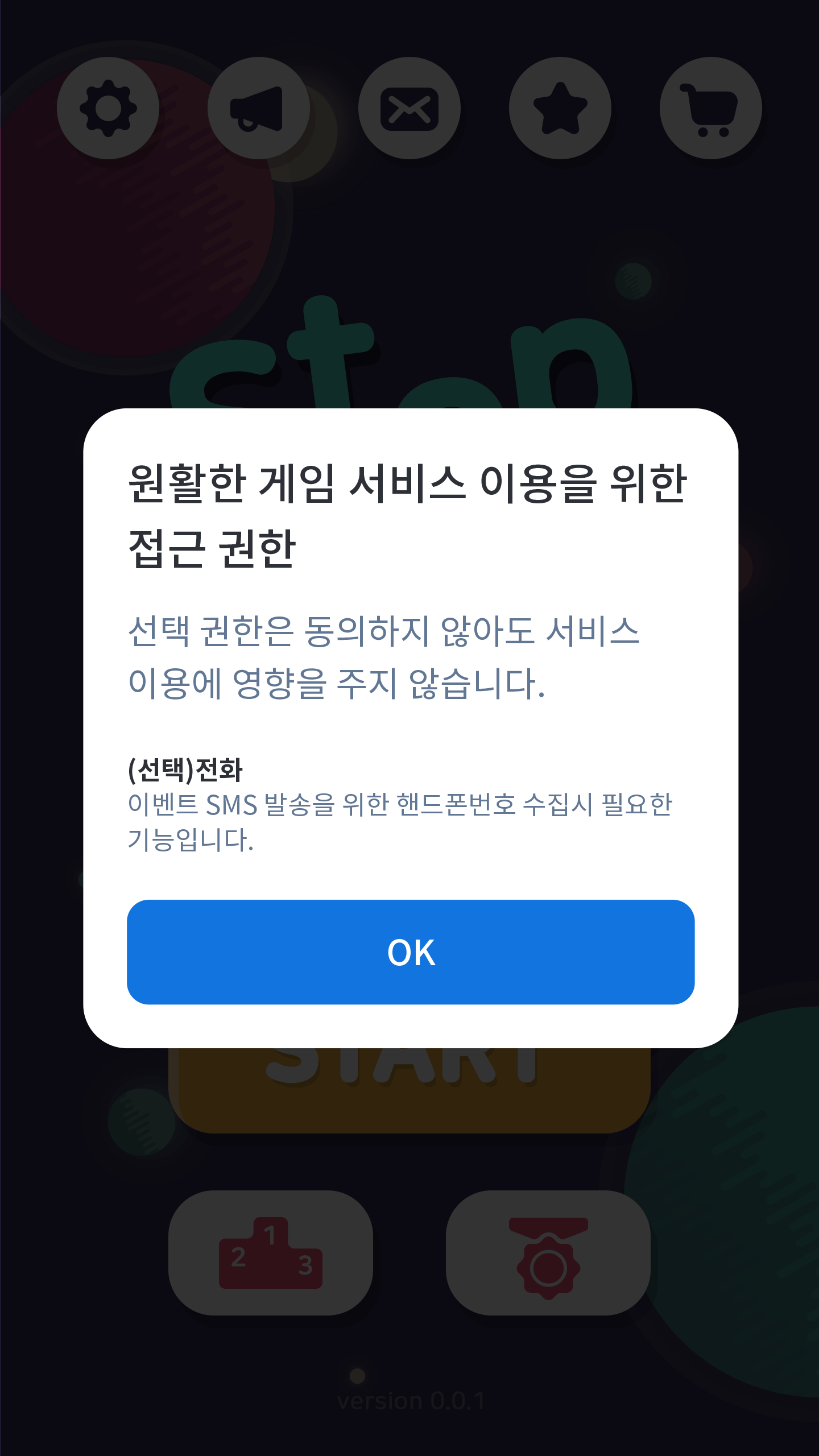

Default permission notice popup by Hive SDK	Custom permission notice popup

How to use

Localized resource file required to notify permission is available if you use getPermissionVeiwData() method in the Configuration class prior to implementing initialization function such as setup() method in the AuthV4 class or initialize() method in the Auth class. This API reads Permissions.zip resource file, suitable for the target language, and composes PermissionVeiwData as string type.

Make sure to add the Permissions.zip file to Xcode project before implementing this API on iOS. On Android, it is optional to add the resource file. If you want to edit texts in the resource file, add the Permissions.zip file to your project as mentioned for iOS. If not added, permission notice data is composed of default resources included in Hive SDK. This feature is available with Hive SDK v4.12.1 and later. If your SDK is earlier than v4.12.1, click here to read details to use this feature with requestPermissionViewData() method.

Refer to the following sample codes how to implement getPermissionViewData()method.

Unity®

HIVELanguage language = HIVELanguage.HIVELanguageEN;
/* Supported language list.
    HIVELanguageDE,    // German
    HIVELanguageEN,    // English
    HIVELanguageES,    // Spanish
    HIVELanguageFR,    // French
    HIVELanguageID,    // Indonesian
    HIVELanguageIT,    // Italian
    HIVELanguageJA,    // Japanese
    HIVELanguageKO,    // Korean
    HIVELanguagePT,    // Portuguese
    HIVELanguageRU,    // Russian
    HIVELanguageTH,    // Thai
    HIVELanguageTR,    // Turkish
    HIVELanguageVI,     // Vietnamese
    HIVELanguageZHS,    // Chinese simplified
    HIVELanguageZHT     // Chinese traditional
*/


PermissionViewData data = Configuration.getPermissionViewData(language);    // language means enum HIVELanguage.

//TODO : contents title :  data.contents
for (int i = 0; i < data.permissions.Count; i++)
{
    /* TODO :
       permission name : data.permissions[i].nativePermissionName
       title : data.permissions[i].title
       contents : data.permissions[i].contents
       category : data.permissions[i].permissionCategory
     */
}
for (int i = 0; i < data.commons.Count; i++)
{
    /* TODO : data.permissions exists only when permission notice is at least one.
        permission name : data.commons[i].nativePermissionName
        title : data.commons[i].title
        contents : data.commons[i].contents
        category : data.commons[i].permissionCategory
     */
}

HIVELanguage language = HIVELanguage.HIVELanguageEN;

/* Supported language list.

HIVELanguageDE, // German

HIVELanguageEN, // English

HIVELanguageES, // Spanish

HIVELanguageFR, // French

HIVELanguageID, // Indonesian

HIVELanguageIT, // Italian

HIVELanguageJA, // Japanese

HIVELanguageKO, // Korean

HIVELanguagePT, // Portuguese

HIVELanguageRU, // Russian

HIVELanguageTH, // Thai

HIVELanguageTR, // Turkish

HIVELanguageVI, // Vietnamese

HIVELanguageZHS, // Chinese simplified

HIVELanguageZHT // Chinese traditional

PermissionViewData data = Configuration.getPermissionViewData(language); // language means enum HIVELanguage.

//TODO : contents title : data.contents

for (int i = 0; i < data.permissions.Count; i++)

{

/* TODO :

permission name : data.permissions[i].nativePermissionName

title : data.permissions[i].title

contents : data.permissions[i].contents

category : data.permissions[i].permissionCategory

}

for (int i = 0; i < data.commons.Count; i++)

{

/* TODO : data.permissions exists only when permission notice is at least one.

permission name : data.commons[i].nativePermissionName

title : data.commons[i].title

contents : data.commons[i].contents

category : data.commons[i].permissionCategory

}

C++

HIVELanguage language = HIVELanguage.HIVELanguageEN;


/* Supported language list.
    HIVELanguageDE,    // German
    HIVELanguageEN,    // English
    HIVELanguageES,    // Spanish
    HIVELanguageFR,    // French
    HIVELanguageID,    // Indonesian
    HIVELanguageIT,    // Italian
    HIVELanguageJA,    // Japanese
    HIVELanguageKO,    // Korean
    HIVELanguagePT,    // Portuguese
    HIVELanguageRU,    // Russian
    HIVELanguageTH,    // Thai
    HIVELanguageTR,    // Turkish
    HIVELanguageVI,     // Vietnamese
    HIVELanguageZHS,    // Chinese simplified
    HIVELanguageZHT     // Chinese traditional
*/

PermissionViewData data =  hive::Configuration::getPermissionViewData(language);    //language means enum HIVELanguage.

//TODO : contents title : data.contents.c_str()
for (auto unit : data.permissions) {
    /* TODO :
        permission name : unit.nativePermissionName.c_str()
        title : unit.title.c_str()
        contents : unit.contents.c_str()
        category : unit.permissionCategory
     */
}
for (auto unit : data.commons) {
    /* TODO : data.permissions exists only when permission notice is at least one.
        permission name : unit.nativePermissionName.c_str()
        title : unit.title.c_str()
        contents : unit.contents.c_str()
        category : unit.permissionCategory
     */
}

HIVELanguage language = HIVELanguage.HIVELanguageEN;

/* Supported language list.

HIVELanguageDE, // German

HIVELanguageEN, // English

HIVELanguageES, // Spanish

HIVELanguageFR, // French

HIVELanguageID, // Indonesian

HIVELanguageIT, // Italian

HIVELanguageJA, // Japanese

HIVELanguageKO, // Korean

HIVELanguagePT, // Portuguese

HIVELanguageRU, // Russian

HIVELanguageTH, // Thai

HIVELanguageTR, // Turkish

HIVELanguageVI, // Vietnamese

HIVELanguageZHS, // Chinese simplified

HIVELanguageZHT // Chinese traditional

PermissionViewData data = hive::Configuration::getPermissionViewData(language); //language means enum HIVELanguage.

//TODO : contents title : data.contents.c_str()

for (auto unit : data.permissions) {

/* TODO :

permission name : unit.nativePermissionName.c_str()

title : unit.title.c_str()

contents : unit.contents.c_str()

category : unit.permissionCategory

}

for (auto unit : data.commons) {

/* TODO : data.permissions exists only when permission notice is at least one.

permission name : unit.nativePermissionName.c_str()

title : unit.title.c_str()

contents : unit.contents.c_str()

category : unit.permissionCategory

}

Android

Configuration.HIVELanguage language = Configuration.HIVELanguage.HIVELanguageEN;


/* Supported language list.
    HIVELanguageDE("de"),    // German
    HIVELanguageEN("en"),    // English
    HIVELanguageES("es"),     // Spanish
    HIVELanguageFR("fr"),    // French
    HIVELanguageIN("in"),    // Indonesian
    HIVELanguageIT("it"),    // Italian
    HIVELanguageJA("ja"),    // Japanerse
    HIVELanguageKO("ko"),    // Korean
    HIVELanguagePT("pt"),    // Portuguese
    HIVELanguageRU("ru"),    // Russian
    HIVELanguageTH("th"),    // Thai
    HIVELanguageTR("tr"),    // Turkish
    HIVELanguageVI("vi"),     // Vietnamese
    HIVELanguageZHS("zh-hans"),    // Chinese simplified
    HIVELanguageZHT("zh-hant");    // Chinese traditional
*/

PermissionView.PermissionViewData data = Configuration.getPermissionViewData(language);    //language is enum HIVELanguage.

//TODO : contents title : data.contents
for (PermissionView.PermissionViewUnitData permissionViewUnitData : data.permissions) {
    /* TODO :
        permission name : permissionViewUnitData.nativePermissionName
        title : permissionViewUnitData.title
        contents : permissionViewUnitData.contents
        category : permissionViewUnitData.Category
     */
}

for (PermissionView.PermissionViewUnitData commonUnitData : data.commons) {
    /* TODO : data.permissions exists only when permission notice is at least one.
        permission name : commonUnitData.nativePermissionName
        title : commonUnitData.title
        contents : commonUnitData.contents
        category : commonUnitData.Category
     */
}

Configuration.HIVELanguage language = Configuration.HIVELanguage.HIVELanguageEN;

/* Supported language list.

HIVELanguageDE("de"), // German

HIVELanguageEN("en"), // English

HIVELanguageES("es"), // Spanish

HIVELanguageFR("fr"), // French

HIVELanguageIN("in"), // Indonesian

HIVELanguageIT("it"), // Italian

HIVELanguageJA("ja"), // Japanerse

HIVELanguageKO("ko"), // Korean

HIVELanguagePT("pt"), // Portuguese

HIVELanguageRU("ru"), // Russian

HIVELanguageTH("th"), // Thai

HIVELanguageTR("tr"), // Turkish

HIVELanguageVI("vi"), // Vietnamese

HIVELanguageZHS("zh-hans"), // Chinese simplified

HIVELanguageZHT("zh-hant"); // Chinese traditional

PermissionView.PermissionViewData data = Configuration.getPermissionViewData(language); //language is enum HIVELanguage.

//TODO : contents title : data.contents

for (PermissionView.PermissionViewUnitData permissionViewUnitData : data.permissions) {

/* TODO :

permission name : permissionViewUnitData.nativePermissionName

title : permissionViewUnitData.title

contents : permissionViewUnitData.contents

category : permissionViewUnitData.Category

}

for (PermissionView.PermissionViewUnitData commonUnitData : data.commons) {

/* TODO : data.permissions exists only when permission notice is at least one.

permission name : commonUnitData.nativePermissionName

title : commonUnitData.title

contents : commonUnitData.contents

category : commonUnitData.Category

}

iOS

HIVELanguage language = kHIVELanguageEN;


/* Supported language list.
    kHIVELanguageDE,    // German
    kHIVELanguageEN,    // English
    kHIVELanguageES,    // Spanish
    kHIVELanguageFR,    // French
    kHIVELanguageID,    // Indonesian
    kHIVELanguageIT,    // Italian
    kHIVELanguageJA,    // Japanese
    kHIVELanguageKO,    // Korean
    kHIVELanguagePT,    // Portuguese
    kHIVELanguageRU,    // Russian
    kHIVELanguageTH,    // Thai
    kHIVELanguageTR,    // Turkish
    kHIVELanguageVI,    // Vietnamese
    kHIVELanguageZHS,    // Chinese simplified
    kHIVELanguageZHT,    // Chinese traditional
*/

HIVEPermissionViewData* data = [HIVEConfiguration getPermissionViewData:language];    //language is enum HIVELanguage.

//TODO : contents title : [data contents]];
for (HIVEPermissionViewUnitData *unit in [data permissions]) {
   /* TODO :
       permission name : [unit nativePermissionName]
       title : [unit title]
       contents : [unit contents]
       category : [unit permissionCategory]
    */
}
for (HIVEPermissionViewUnitData *unit in [data commons]) {
   /* TODO : [data permissions] exists only when permission notice is at least one.
       permission name : [unit nativePermissionName]
       title : [unit title]
       contents : [unit contents]
       category : [unit permissionCategory]
    */
}

HIVELanguage language = kHIVELanguageEN;

/* Supported language list.

kHIVELanguageDE, // German

kHIVELanguageEN, // English

kHIVELanguageES, // Spanish

kHIVELanguageFR, // French

kHIVELanguageID, // Indonesian

kHIVELanguageIT, // Italian

kHIVELanguageJA, // Japanese

kHIVELanguageKO, // Korean

kHIVELanguagePT, // Portuguese

kHIVELanguageRU, // Russian

kHIVELanguageTH, // Thai

kHIVELanguageTR, // Turkish

kHIVELanguageVI, // Vietnamese

kHIVELanguageZHS, // Chinese simplified

kHIVELanguageZHT, // Chinese traditional

HIVEPermissionViewData* data = [HIVEConfiguration getPermissionViewData:language]; //language is enum HIVELanguage.

//TODO : contents title : [data contents]];

for (HIVEPermissionViewUnitData *unit in [data permissions]) {

/* TODO :

permission name : [unit nativePermissionName]

title : [unit title]

contents : [unit contents]

category : [unit permissionCategory]

}

for (HIVEPermissionViewUnitData *unit in [data commons]) {

/* TODO : [data permissions] exists only when permission notice is at least one.

permission name : [unit nativePermissionName]

title : [unit title]

contents : [unit contents]

category : [unit permissionCategory]

}

Designing permission notice UI with PermissionViewData

Composing UI with data
If you request getPermissionViewData() method, you can obtain PermissionViewData which is composed of data that forms permission notice UI. In PermissionViewData, PermissionViewUnitData explains each permission as a list format.

PermissionViewData

Data name	Data type	Meaning	Exposure to UI
contents	String	It explains authority notice popup. Display on UI.	O
permissions	Linear list or array (depending on language)	It is linear list or array contained the description and name of each permission. In case new permissions may be added according to OS update or legal policy, design the flexible list, for example, the UI counting data can include various types of values. For more details about data, refer to the following PermissionViewUnitData.	Some part of them, O
commons	Linear list or array (depending on language)	It is linear list or array contained the description and name of common item. Make sure to include at least one permission notice to use commons data. For more details about data, refer to the following PermissionViewUnitData.	O

PermissionViewUnitData

Data name	Data type	Meaning
title	String	Permission name to expose to UI.
contents	String	Permission details to expose to UI. It explains how to use the permission.
nativePermissionName	String	Permission name used by each OS.
permissionCategory	enum	Permission types not exposed to UI. It describes the permission in use and the function which permission uses. You can use this data by displaying some contents you want on permission UI. To check the permission list, refer to the source code.

UI sample
Following is a sample UI which is composed by calling getPermissionViewData(). See the sample image and design suitable UI for your game.
Managing authority notice
getPermissionViewData() method in the Configuration class is newly provided to have the customizing permission notice popup your own way. It only processes a function to compose permission notice data. It means that you can specify how to implement the process. For example, you can determine whether to expose the popup the first time only or at every update.

Hive sets to display the popup the first time. If you comply with the Hive policy, make sure to code the following yellow parts with the new API. To check the function of country verification by IP, refer to the server API.
- Diagram of composing permission notice data

How to use

Information required to notify permission are available if you use requestPermissionViewData() method prior to implementing initialization function such as setup() method in the AuthV4 class or initialize() method in the Auth class. requestPermissionViewData() is async function, so use the appropriate function included in AuthV4 and Auth class depending on the type of authentication module. Refer to the following sample codes how to implement requestPermissionViewData() method.

AuthV4 class

Unity®

AuthV4.requestPermissionViewData((ResultAPI result, PermissionViewData data) => {
    if (result.isSuccess())
    {
        if (result.code == ResultAPI.Code.AuthV4SkipPermissionView)
        {
            // Skip the permission notice.
        }
        else
        {
            // data.contents(Popup title)
            for (int i = 0; i < data.permissions.Count; i++)
            {
                // data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)
            }
            for (int i = 0; i < data.commons.Count; i++)
            {
                // data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)
            }
        }
    }
    else
    {
        // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
    }
});

AuthV4.requestPermissionViewData((ResultAPI result, PermissionViewData data) => {

if (result.isSuccess())

{

if (result.code == ResultAPI.Code.AuthV4SkipPermissionView)

{

// Skip the permission notice.

}

else

{

// data.contents(Popup title)

for (int i = 0; i < data.permissions.Count; i++)

{

// data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)

}

for (int i = 0; i < data.commons.Count; i++)

{

// data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)

}

else

{

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

});

C++

AuthV4::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data) {


    if (result.isSuccess()) {
        if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {
            // Skip the permission notce
        }
        else {
            // data.contents (Popup title)
            for (auto unit : data.permissions) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
            for (auto unit : data.commons) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
    }

});

AuthV4::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data) {

if (result.isSuccess()) {

if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {

// Skip the permission notce

}

else {

// data.contents (Popup title)

for (auto unit : data.permissions) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

for (auto unit : data.commons) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

else {

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

});

Android

AuthV4.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {
    @Override
    public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {
        if (result.isSuccess()) {
            if (result.code == ResultAPI.Code.AuthV4SkipPermissionView) {
                // Skip the permission notice
            }
            else {
                // data.contents(Popup title)
                PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;
                for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {
                    // permissionViewUnitData.nativePermissionName(Permission name), permissionViewUnitData.title(Title), permissionViewUnitData.contents(Contents), permissionViewUnitData.permissionCategory(Permission category)
                }


                PermissionView.PermissionViewUnitData[] commonDatas = data.commons;
                for (PermissionView.PermissionViewUnitData commonUnitData : commonDatas) {
                    // commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)
                }
            }
        } else {
            // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
        }
    }

});

AuthV4.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {

@Override

public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {

if (result.isSuccess()) {

if (result.code == ResultAPI.Code.AuthV4SkipPermissionView) {

// Skip the permission notice

}

else {

// data.contents(Popup title)

PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;

for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {

// permissionViewUnitData.nativePermissionName(Permission name), permissionViewUnitData.title(Title), permissionViewUnitData.contents(Contents), permissionViewUnitData.permissionCategory(Permission category)

}

PermissionView.PermissionViewUnitData[] commonDatas = data.commons;

for (PermissionView.PermissionViewUnitData commonUnitData : commonDatas) {

// commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)

}

} else {

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

});

iOS

[HIVEAuthV4 requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {
    if ([result isSuccess]) {
        if ([result getCode] == kAuthV4SkipPermissionView) {
            // Skip the permission notice
        }
        else {
            // [data contents](Popup title)
            for (HIVEPermissionViewUnitData *unit in [data permissions]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
            for (HIVEPermissionViewUnitData *unit in [data commons]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.
    }
}];

[HIVEAuthV4 requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {

if ([result isSuccess]) {

if ([result getCode] == kAuthV4SkipPermissionView) {

// Skip the permission notice

}

else {

// [data contents](Popup title)

for (HIVEPermissionViewUnitData *unit in [data permissions]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

for (HIVEPermissionViewUnitData *unit in [data commons]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

else {

// Hold the error named AuthV4InProgress, and ignore other errors. In case of implementing AuthV4.setup, default authority notice popup is displayed.

}

}];

Auth class

Unity®

Auth.requestPermissionViewData((ResultAPI result, PermissionViewData data) =>
{
    if(result.isSuccess())
    {
        if (result.code == ResultAPI.Code.AuthSkipPermissionView)
        {
            // Skip the permission notice
        }
        else
        {
            // data.contents(Popup title)
            for (int i = 0; i<data.permissions.Count; i++)
            {
                // data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)
            }
            for (int i = 0; i<data.commons.Count; i++)
            {
                // data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)
            }
        }
    }
    else
    {
        // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
    }
});

Auth.requestPermissionViewData((ResultAPI result, PermissionViewData data) =>

{

if(result.isSuccess())

{

if (result.code == ResultAPI.Code.AuthSkipPermissionView)

{

// Skip the permission notice

}

else

{

// data.contents(Popup title)

for (int i = 0; i<data.permissions.Count; i++)

{

// data.permissions[i].nativePermissionName(Permission name), data.permissions[i].title(Title), data.permissions[i].contents(Contents), data.permissions[i].permissionCategory(Permission category)

}

for (int i = 0; i<data.commons.Count; i++)

{

// data.commons[i].nativePermissionName(Permission name), data.commons[i].title(Title), data.commons[i].contents(Contents), data.commons[i].permissionCategory(Permission category)

}

else

{

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

});

C++

Auth::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data){


    if (result.isSuccess()) {
        if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {
            // Skip the permission notice
        }
        else {
            // data.contents (Popup title)
            for (auto unit : data.permissions) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
            for (auto unit : data.commons) {
                // unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
    }

});

Auth::requestPermissionViewData([=](ResultAPI const & result,PermissionViewData const & data){

if (result.isSuccess()) {

if (result.code == hive::ResultAPI::AuthV4SkipPermissionView) {

// Skip the permission notice

}

else {

// data.contents (Popup title)

for (auto unit : data.permissions) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

for (auto unit : data.commons) {

// unit.nativePermissionName.c_str()(Permission name), unit.title.c_str()(Title), unit.contents.c_str()(Contents), unit.permissionCategory(Permission category)

}

else {

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

});

Android

Auth.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {
    @Override
    public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {
        if (result.isSuccess()) {
            if (result.code == ResultAPI.Code.AuthSkipPermissionView) {
                // Skip the permission notice
            }
            else {
                // data.contents(Popup title)
                PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;
                for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {
                    // permissionViewUnitData.nativePermissionName(Permission name), permissionViewUnitData.title(Title), permissionViewUnitData.contents(Contents), permissionViewUnitData.permissionCategory(Permission category)
                }


                PermissionView.PermissionViewUnitData[] commonUnitDatas = data.commons;
                for (PermissionView.PermissionViewUnitData commonUnitData : commonUnitDatas) {
                    // commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)
                }
            }
        } else {
            // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
        }
    }

});

Auth.requestPermissionViewData(new PermissionView.PermissionViewDataListener() {

@Override

public void onPermissionViewData(ResultAPI result, PermissionView.PermissionViewData data) {

if (result.isSuccess()) {

if (result.code == ResultAPI.Code.AuthSkipPermissionView) {

// Skip the permission notice

}

else {

// data.contents(Popup title)

PermissionView.PermissionViewUnitData[] permissionViewUnitDatas = data.permissions;

for (PermissionView.PermissionViewUnitData permissionViewUnitData : permissionViewUnitDatas) {

}

PermissionView.PermissionViewUnitData[] commonUnitDatas = data.commons;

for (PermissionView.PermissionViewUnitData commonUnitData : commonUnitDatas) {

// commonUnitData.nativePermissionName(Permission name), commonUnitData.title(Title), commonUnitData.contents(Contents), commonUnitData.permissionCategory(Permission category)

}

} else {

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

});

iOS

[HIVEAuth requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {
    if ([result isSuccess]) {
        if ([result getCode] == kAuthSkipPermissionView) {
            // Skip the permission notice
        }
        else {
            // [data contents](Popup title)
            for (HIVEPermissionViewUnitData *unit in [data permissions]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
            for (HIVEPermissionViewUnitData *unit in [data commons]) {
                // [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)
            }
        }
    }
    else {
        // Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.
    }
}];

[HIVEAuth requestPermissionViewData:^(HIVEResultAPI *result, HIVEPermissionViewData *data) {

if ([result isSuccess]) {

if ([result getCode] == kAuthSkipPermissionView) {

// Skip the permission notice

}

else {

// [data contents](Popup title)

for (HIVEPermissionViewUnitData *unit in [data permissions]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

for (HIVEPermissionViewUnitData *unit in [data commons]) {

// [unit nativePermissionName](Permission name), [unit title](Title), [unit contents](Contents), [unit permissionCategory](Permission category)

}

else {

// Hold the error named AuthInProgressRequestPermissionViewData, and ignore other errors. In case of implementing Auth.initialize, default authority notice popup is displayed.

}

}];

Designing permission notice UI with PermissionViewData

Composing UI with data
If you request requestPermissionViewData() method, you can obtain PermissionViewData which is composed of data that forms permission notice UI. In PermissionViewData, PermissionViewUnitData explains each permission as a list format.

PermissionViewData

Data name	Data type	Meaning	Exposure to UI
contents	String	It explains permission notice popup. Display on UI.	O
permissions	Linear list or array (depending on language)	It is linear list or array contained the description and name of each permission. In case new permissions may be added according to OS update or legal policy, design the flexible list, for example, the UI counting data can include various types of values. For more details about data, refer to the following PermissionViewUnitData.	Some part of them, O
commons	Linear list or array (depending on language)	It is linear list or array contained the description and name of common item. Make sure to include at least one permission notice to use commons data. For more details about data, refer to the following PermissionViewUnitData.	O

PermissionViewUnitData

Data name	Data type	Meaning
title	String	Permission name to expose to UI.
contents	String	Permission details to expose to UI. It explains how to use the permission.
nativePermissionName	String	Permission name used by each OS.
permissionCategory	enum	Permission types not exposed to UI. It describes the permission in use and the function which permission uses. You can use this data by displaying some contents you want on permission UI. To check the permission list, refer to the source code.

UI sample
Following is a sample UI which is composed by calling requestPermissionViewData(). See the sample image and design suitable UI for your game.
Managing permission notice
Once permission notice is exposed, you don’t have to display permission notice popup again. For easy management, Hive SDK considers that implementing setup() method in the AuthV4 class or initialize() of Auth is confirmed the authority after calling requestPermissionViewData() method. So after this, no more data is transmitted when calling requestPermissionViewData(). As permission notice is no need, Result API code is used for transmission code. Refer to the following table to use appropriate code for each module.

Diagram of customed permission notice

How to call requestPermissionViewData()

Close the calling method

Texts

Depending on the access level, required/optional access permision is displayed. Add and inform the access permission which game requires.

iOS

According to Act on Promotion of Information and Communication Network Utilization and information Protection, permission should be exposed prior to request, and the case of iOS displays the permission popup only to users in Korea. By following the iOS policy, which demands to request permissions at the time of use, three permissions, CAMERA, PHOTO and PUSH are default permissions to notify. CAMERA and PHOTO display permission request popup at the time of use, and PUSH requests at the time of initializing SDK. Even if user denies the permissions, the three optional permissions do not bother the game play.

In your built-Xcode project, uncompress the Permissions.zip file and drag and drop to the subdirectory of the project to organize the resources. In Project > info > Localizations, 15 languages are available, and when you select Permission.strings file, checkmarks are needed for completion as you see in the following inspector video clip. After this, you can customize as you want.

Add the title and explanation of the necessary permission in the available lists of Permission.strings. If you add fifteen language resouces in your Xcode project and prompt to change the Korean resource, for example, Hive SDK v4.12.1 changes the texts in permission notice popup only when you add or edit the texts or title in Permission.strings (Korean).

"Header_Title" = "Access authority notice for gameplay";
"Header_OK" = "OK";


"Camera_Title" = "(Optional)Camera";
"Camera_Description" = "This authority is required to use camera for profile settings in your game.";

"Photos_Title" = "(Optional)Photo";
"Photos_Description" = "This authority is required to upload photos to the profile in your game.";

"Push_Title" = "(Optional)Push";
"Push_Description" = "This authority is required to receive push messages from the game.";

"AppleMusic_Title" = "Apple Music test for additional authority";
"AppleMusic_Description" = "This content is to test additional authority for Apple Music.";

"Common_Title" = "";
"Common_Description" = "You can still use the service without agreeing to the optional permissions.";

"Bluetooth_Title" = "";
"Bluetooth_Description" = "";

"Calendar_Title" = "";
"Calendar_Description" = "";

"Health_Title" = "";
"Health_Description" = "";

"Home_Title" = "";
"Home_Description" = "";

"Location_Title" = "";
"Location_Description" = "";

"Microphone_Title" = "";
"Microphone_Description" = "";

"Motion_Title" = "";
"Motion_Description" = "";

"Reminders_Title" = "";
"Reminders_Description" = "";

"Siri_Title" = "";
"Siri_Description" = "";

"SpeechRecognition_Title" = "";
"SpeechRecognition_Description" = "";

"TVProviderAccount_Title" = "";
"TVProviderAccount_Description" = "";

"Header_Title" = "Access authority notice for gameplay";

"Header_OK" = "OK";

"Camera_Title" = "(Optional)Camera";

"Camera_Description" = "This authority is required to use camera for profile settings in your game.";

"Photos_Title" = "(Optional)Photo";

"Photos_Description" = "This authority is required to upload photos to the profile in your game.";

"Push_Title" = "(Optional)Push";

"Push_Description" = "This authority is required to receive push messages from the game.";

"AppleMusic_Title" = "Apple Music test for additional authority";

"AppleMusic_Description" = "This content is to test additional authority for Apple Music.";

"Common_Title" = "";

"Common_Description" = "You can still use the service without agreeing to the optional permissions.";

"Bluetooth_Title" = "";

"Bluetooth_Description" = "";

"Calendar_Title" = "";

"Calendar_Description" = "";

"Health_Title" = "";

"Health_Description" = "";

"Home_Title" = "";

"Home_Description" = "";

"Location_Title" = "";

"Location_Description" = "";

"Microphone_Title" = "";

"Microphone_Description" = "";

"Motion_Title" = "";

"Motion_Description" = "";

"Reminders_Title" = "";

"Reminders_Description" = "";

"Siri_Title" = "";

"Siri_Description" = "";

"SpeechRecognition_Title" = "";

"SpeechRecognition_Description" = "";

"TVProviderAccount_Title" = "";

"TVProviderAccount_Description" = "";

After successful addition, the permission in detail is displayed when user executes the app for the first time.

Android

By following the Android policy, PHONE is a default permission of Hive SDK permission notice and the access permission notice to OS on devices with Android 6.0 (API Level 23) and later version. PHONE, a default permission to notify, requests to identify device ID at the time of item rewards from game events. Even if user denies the permission, the optional permission does not bother the game play.

If you want to use Android resources, uncompress the Permissions.zip file and copy and paste in ../res folder to customize as you want.

Due to specific featrue of Unity, it conflicts with permission notice resource that Hive SDK contains. Therefore, make sure to add the version at the end of folder name, copy and paste the folder to use permission notice resouces for customization in advance. Refer to the following .gif files for using the resources.

Android
Cocos2d-x

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="hive_permission_ui_title">Access authority notice for gameplay</string>
    <string name="hive_permission_ui_ok">OK</string>


    <!-- PermissionGroup 'PHONE' -->
    <string name="hive_permission_phone_title">(Optional)PHONE</string>
    <string name="hive_permission_phone_desc">The authority is required to use the device identifier when sending event rewards in the game.</string>

    <!-- PermissionGroup 'CONTACTS' -->
    <string name="hive_permission_contacts_title">(Optional)CONTACTS</string>
    <string name="hive_permission_contacts_desc">The authority is required to access your Contacts to find in-game friends.</string>

    <!-- PermissionGroup 'STORAGE' -->
    <string name="hive_permission_storage_title">(Optional)STORAGE</string>
    <string name="hive_permission_storage_desc">The authority is required to use an external memory storage for additional downloads.</string>

    <!-- PermissionGroup 'LOCATION' -->
    <string name="hive_permission_location_title">(Optional)LOCATION</string>
    <string name="hive_permission_location_desc">The authority is required to access your location.</string>

    <!-- PermissionGroup 'MICROPHONE' -->
    <string name="hive_permission_microphone_title">(Optional)MICROPHONE</string>
    <string name="hive_permission_microphone_desc">This authority is required to use the microphone in your device.</string>

    <!-- PermissionGroup 'CAMERA' -->
    <string name="hive_permission_camera_title">(Optional)CAMERA</string>
    <string name="hive_permission_camera_desc">This authority is required to take pictures and record video clips.</string>

    <!-- PermissionGroup 'SMS' -->
    <string name="hive_permission_sms_title">(Optional)SMS</string>
    <string name="hive_permission_sms_desc"></string>

    <!-- PermissionGroup 'CALENDAR' -->
    <string name="hive_permission_calendar_title">(Optional)CALENDAR</string>
    <string name="hive_permission_calendar_desc"></string>

    <!-- PermissionGroup 'SENSORS' -->
    <string name="hive_permission_sensors_title">(Optional)SENSORS</string>
    <string name="hive_permission_sensors_desc"></string>

    <!-- PermissionGroup 'COMMON' -->
    <string name="hive_permission_common_title"></string>
    <string name="hive_permission_common_desc">You can still use the service without agreeing to the optional permissions.</string>

</resources>

<?xml version="1.0" encoding="utf-8"?>

<string name="hive_permission_ui_title">Access authority notice for gameplay</string>

<string name="hive_permission_phone_title">(Optional)PHONE</string>

<string name="hive_permission_phone_desc">The authority is required to use the device identifier when sending event rewards in the game.</string>

<string name="hive_permission_contacts_title">(Optional)CONTACTS</string>

<string name="hive_permission_contacts_desc">The authority is required to access your Contacts to find in-game friends.</string>

<string name="hive_permission_storage_title">(Optional)STORAGE</string>

<string name="hive_permission_storage_desc">The authority is required to use an external memory storage for additional downloads.</string>

<string name="hive_permission_location_title">(Optional)LOCATION</string>

<string name="hive_permission_location_desc">The authority is required to access your location.</string>

<string name="hive_permission_microphone_title">(Optional)MICROPHONE</string>

<string name="hive_permission_microphone_desc">This authority is required to use the microphone in your device.</string>

<string name="hive_permission_camera_title">(Optional)CAMERA</string>

<string name="hive_permission_camera_desc">This authority is required to take pictures and record video clips.</string>

<string name="hive_permission_sms_title">(Optional)SMS</string>

<string name="hive_permission_calendar_title">(Optional)CALENDAR</string>

<string name="hive_permission_sensors_title">(Optional)SENSORS</string>

<string name="hive_permission_common_desc">You can still use the service without agreeing to the optional permissions.</string>

</resources>

How Hive SDK Initialization works

Hive SDK Initialization

Hive for New Corporate

Available Resources

Customizing Access Permission Screen to App

Screen design

How to use

Designing permission notice UI with PermissionViewData

How to use

Designing permission notice UI with PermissionViewData

Texts

iOS

Android

Getting Started

SDK Development

Console Guide

Download

API Document

Support

Module	Code
AuthV4	AuthV4SkipPermissionView
Auth	AuthSkipPermissionView

Initializing Hive SDK

How Hive SDK Initialization works

Hive SDK Initialization

Hive for New Corporate

Available Resources

Customizing Access Permission Screen to App

Screen design

How to use

Designing permission notice UI with PermissionViewData

How to use

Designing permission notice UI with PermissionViewData

Texts

iOS

Android

Getting Started

SDK Development

Console Guide

Download

API Document

Support
